Name: Circuit breaker DMX³ 4000 1000V, 3 poles, draw-out version and electronic protection unit
SKU: 028520

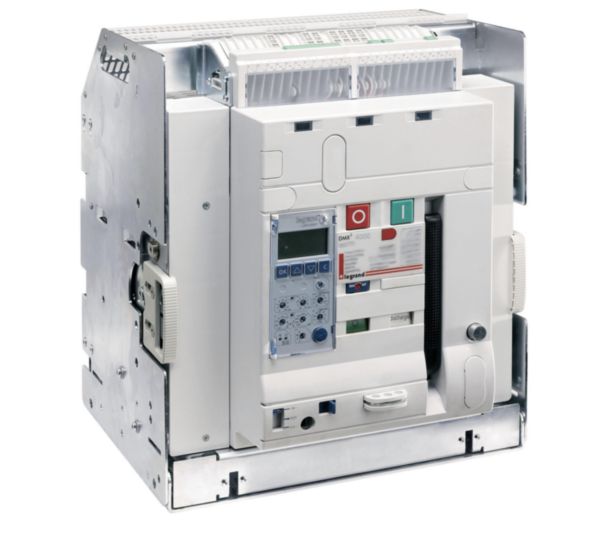

Circuit breaker DMX³ 4000 1000V, 3 poles, draw-out version and electronic protection unit

DMX³ 4000 1000V LEGRAND

Circuit breaker DMX³ 4000 1000V, 3 poles, draw-out version and electronic protection unit

REF. 028520 EAN. 3414972093019

Compare You can only compare 4 products, you must remove 1 to add this one

Breaking capacity of 50kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrialinstallations. Rated insulation voltageUe up to 1000 Vac (Icu=50kA @ 1000Vac and 65kA @800Vac). Rated impulse withstand voltage of 12kV
Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
Electronic protection module ot type MP4 (adjustments accomplished by selector switches). Thermal protection within range of 0,4 - 1,0 of the rated current.Magnetic protection within range of 1,5 - 10 of the rated current.
Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts.Can used with rotary handles or motor operator.Locking accessories are available.
Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals.Is available also in a plug-in version (circuit breaker fitted with special terminals and mountedon a plug-in base) or in a draw-out version (a plug-in version fitted with a"Debro-lift" mechanism which can be used to withdraw the breaker whilekeeping it on its base)

Electric and mechanical robustness, in addiction to breaking capacity and chances of accessorizing, are perfectly suited for increase continuity service looking at the plant energy efficiency and in respect of “green aspects”. High performance, reliability and strength are the main advantages of this new range.

DMX³ 1000V platform provide a complete "project" approach in premiummarket segment, offering a range completely suitable for high powerapplication, in particular for wind turbine, photovoltaic or railway installations

Rated permanent current Iu	630 A
Rated voltage (Min-Max)	800-1000 V
Overload release current setting (Min-Max)	252-630 A
Adjustment range short-term delayed short-circuit release (Min-Max)	378-6300 A
Adjustment range undelayed short-circuit release (Min-Max)	1260-65000 A
Device construction	Built-in device slide-in technique (withdrawable)
Integrated earth fault protection	No
Type of electrical connection of main circuit	Bolt connection
Suitable for DIN rail (top hat rail) mounting	No
DIN rail (top hat rail) mounting optional	No
Number of auxiliary contacts as change-over contact	4
With switched-off indicator	Yes
With integrated under voltage release	No
Number of poles	3
Position of connection for main current circuit	Back side
Type of control element	Push button
Complete device with protection unit	No
Motor drive integrated	No
Motor drive optional	Yes

Degree of protection (IP)	IP30
Width	425 mm
Height	473 mm
Depth	433 mm
degree of impact strength (IK)	Not applicable
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-25-85 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Colour	Grey
RAL-number	7035
Halogen free	Yes
Terminals capacity (Min-Max)	150-370 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
Contains Batteries and/or Accumulator	No
