Charger kit: 4 x 15 W wireless chargers for furniture, connected with AU CH 2P plug

Legrand

Charger kit: 4 x 15 W wireless chargers for furniture, connected with AU CH 2P plug

REF. 077649L EAN. 3414971941373

Complete ready-to-install kit with 4 Aluminium round 15 W wireless chargers, 80 mm diameter, for furniture. For fast wireless power (induction) charging of a QI standard smartphone.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Complete ready-to-install kit with 4 Aluminium round 15 W wireless chargers, 80 mm diameter, for furniture. For fast wireless power (induction) charging of a QI standard smartphone.

Product characteristics

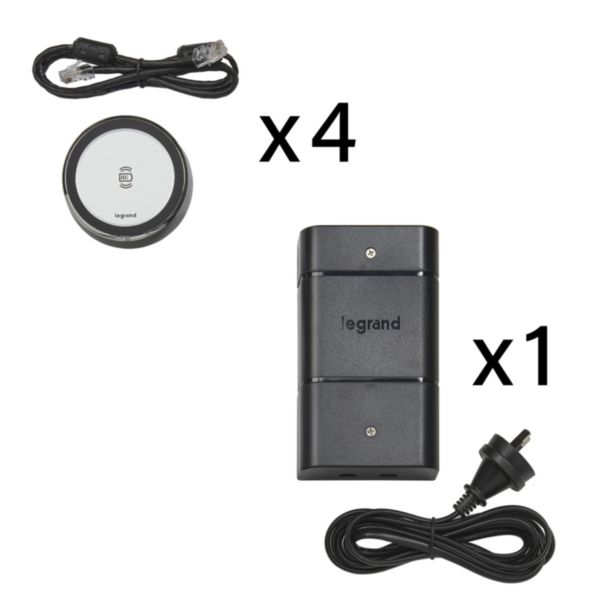

  • Supplied with 100 W mobile power stick with 2.5 m cord and AU CH 2P plug, 4 x 2.5 m RJ45 cords, 4 Aluminium wireless chargers, cable ties and adhesive bases and 4 identification stickers for public areas
  • 100 W power supply connected with AU CH 2P plug and chargers connected with RJ 45 cords, 80 mm drilling diam. Choice of distribution in star or series connection depending on furniture configuration, connected on a power outlet with a 2.5 m cord and standard AU CH 2P plug
  • Chargers with non-slip coating
  • Chargers with 1 RJ45 input/1 RJ45 output for star or series connection
  • Choice of fixing power supply with screws or double-sided tape (provided). Charger locks under furniture with a butterfly nut
Recommendation / Restriction
  • IP44 chargers installed, good impact resistance (IK8)

The product's benefits

Installation
  • Choice of charger distribution in star or series connection depending on furniture configuration.
Usage
  • Fast charging comparable to 15 W USB chargers
Avantages
  • Can supply 4 wireless chargers simultaneously without loss of power and without needing to use a multi-outlet unit
  • Supplied with identification stickers for marking in public areas
  • Certified WPC QI

Technical characteristics

Model Other
Number of ports USB-A 0
Number of ports USB-C 0
Operating voltage (Min-Max) 48-48 V
Connection type Other
Mounting method Flush-mounted
Colour Aluminium
Device width 87 mm
Device height 87 mm
Device depth 27 mm
Min. depth of built-in installation box 0 mm
Suitable for degree of protection (IP) IP44
degree of impact strength (IK) IK08
Antimicrobial treatment No
Wireless Yes
Built-in depth 24.5 mm
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type DC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Standby consumption 0.01 mA
Mandatory neutral Yes
Terminal marking indication Yes
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 2.5-2.5 mm²
