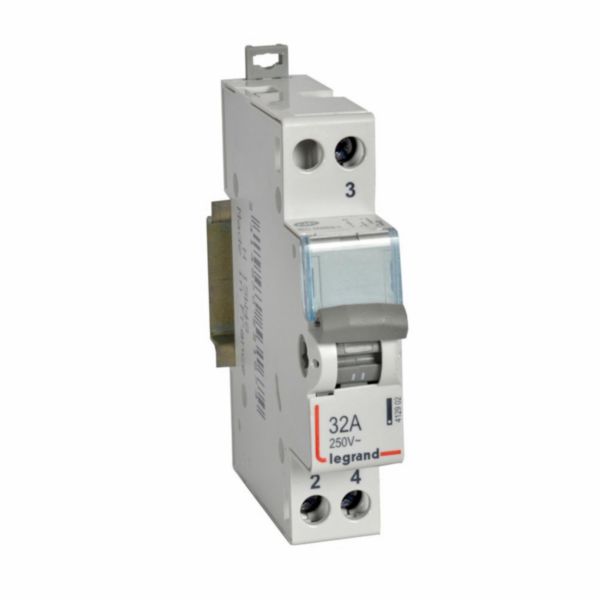

Name: Changeover switch CX³ two-way with centre point - 250V~ - 32A - 1 module
SKU: 412902

Changeover switch CX³ two-way with centre point - 250V~ - 32A - 1 module

CX³ LEGRAND

Changeover switch CX³ two-way with centre point - 250V~ - 32A - 1 module

REF. 412902 EAN. 3414970531674

Compare You can only compare 4 products, you must remove 1 to add this one

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.

Switching function	Two-way switch
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	1
Number of poles	2
Rated current	32 A
Rated voltage	250 V
Min. rated voltage	230 V
Short-circuit breaking capacity (Icw)	0.384 kA
Voltage type	AC
With complemantary luminous signal	No
Colour calotte	Other
Lamp type	Other
Lamp socket	Other

Width in number of modular spacings	1
Built-in depth	44 mm
Degree of protection (IP)	IP20
Width	17.7 mm
Height	94 mm
Depth	76 mm
Operating / setting temperature	-5-40 °C
Storage temperature	-10-70 °C
Terminal marking indication	Yes
Connection type	Screwed terminal
Terminals capacity	1.5-6 mm²
Label space/information surface	Yes
Mounting method	DIN rail

Changeover switch CX³ two-way with centre point - 250V~ - 32A - 1 module
