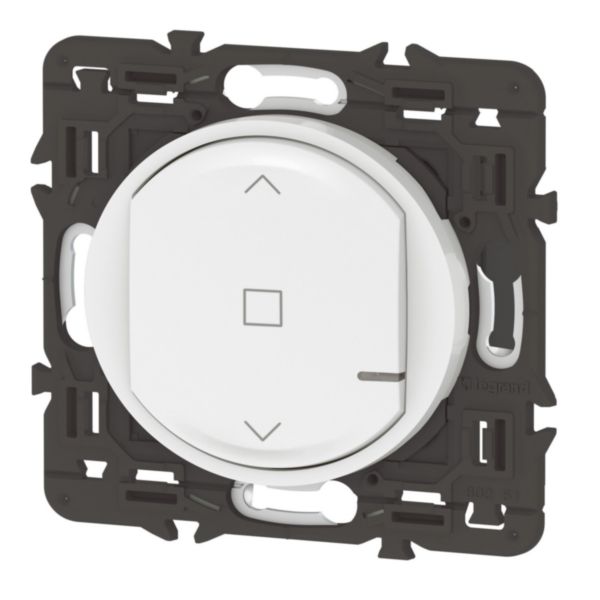

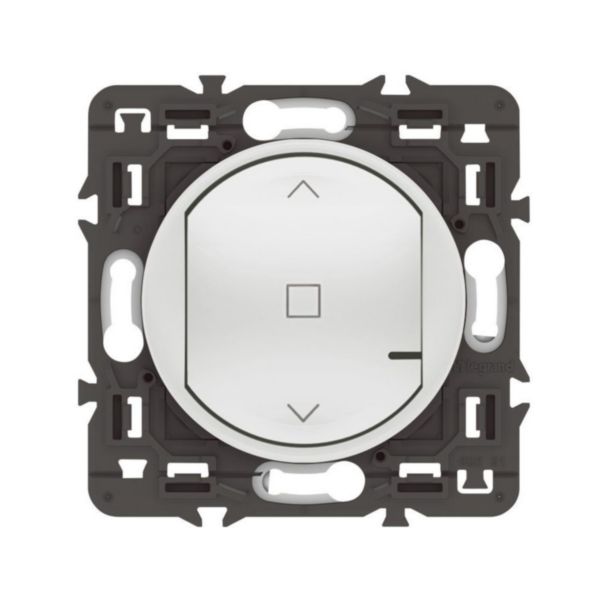

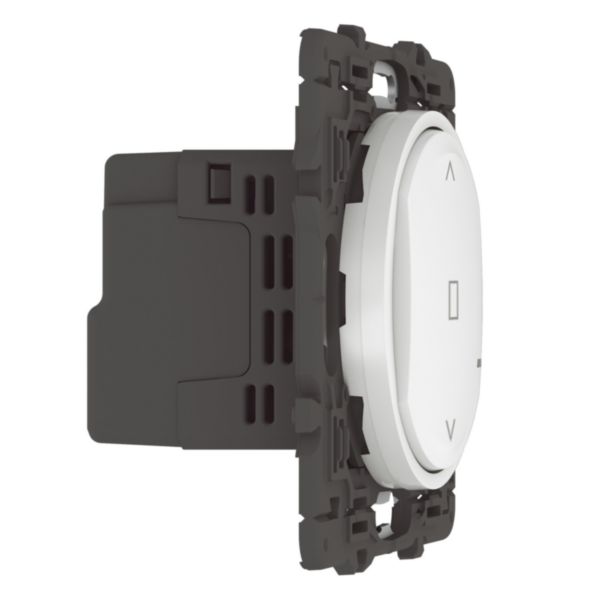

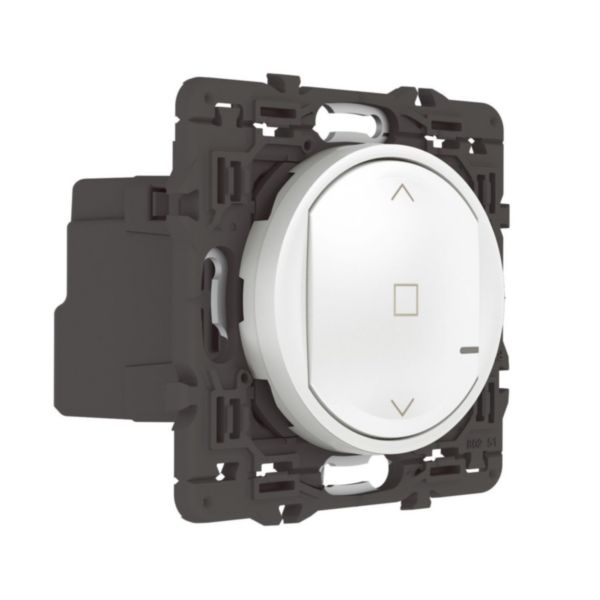

Name: Céliane with Netatmo Connected roller shutter switch
SKU: 067726A

Céliane with Netatmo Connected roller shutter switch

Céliane with Netatmo Legrand

Céliane with Netatmo Connected roller shutter switch

REF. 067726A EAN. 3414972554794

Compare You can only compare 4 products, you must remove 1 to add this one

Raise/lower/stop function
Compatible with wired roller shutters with electronic and mechanical end stops. Not compatible with radio-controlled roller shutters.
LED indicator with locating function that can be activated in the App
White

To be fitted with a Céliane cover plate. To connect your roller shutter switch, you first need to purchase and install a CELIANE with Netatmo connected starter pack.

The connected roller shutter switch is easy to install in place of an existing flush-mounted switchand requires a standard depth flush-mounted box (40 mm). Claw or screw fixing possible

For centralised management of your roller shutters, you can link it to one or more GAMME with Netatmo wireless controls.

Combined with the connected starter pack, Celiane with Netatmo products can be controlled manually, remotely via your smartphone or by voice.

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Zigbee
Radio frequency bidirectional	Yes
Mounting method	Flush-mounted
Width in number of modular spacings	2
With bus connection	No
Bus module detachable	No
Local operation/hand operation	Yes
With LED indication	Yes
Number of inputs	4
Switching current (resistive)	2 A
Max. switching power	500 W
Max. number of venetian-blind outputs	1
With switch function	Yes
Type of current	AC
Degree of protection (IP)	IP41
Min. depth of built-in installation box	40 mm
Width	74 mm
Height	74 mm
Depth	46 mm
Built-in depth	33 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C

Storage temperature (Min-Max)	0-45 °C
Nominal voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Standby consumption	2.1 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Colour	White
RAL-number	9003
Halogen free	Yes
Antimicrobial treatment	No
Connection type	Screwed terminal
Number of terminals	4
Terminals capacity (Min-Max)	1.5-2.5 mm²
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Shutter management
Application name	Home + Control
Programming way	Smartphone apps
