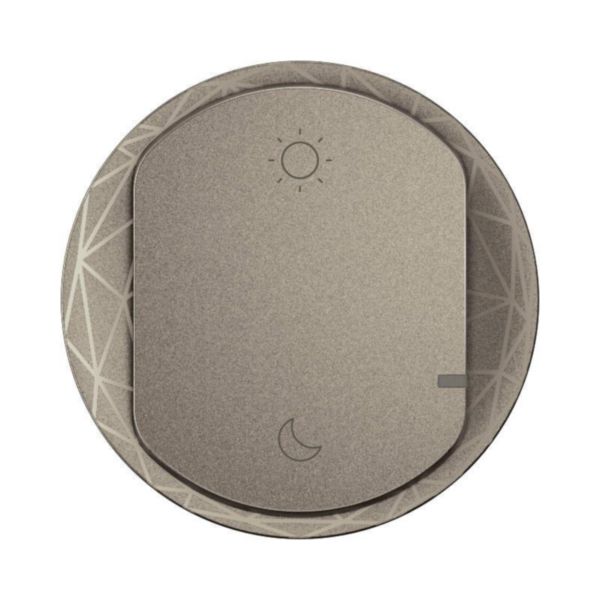

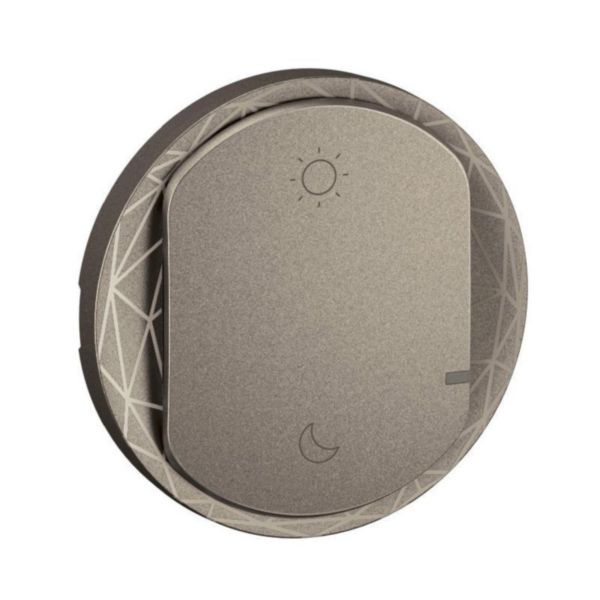

Céliane - Wake up / sleep cover - Titanium

Name: Céliane - Wake up / sleep cover - Titanium
SKU: CT1412

Legrand

REF. CT1412 EAN. 3414972411462

Finition :

Black

Titanium

White

Compare You can only compare 4 products, you must remove 1 to add this one

Model	One-part rocker
Imprint/indication	Various symbols
Scannable symbol/barrier free	No
Utilization	Switch/push button
Suitable for touch sensor connector for bus system	Yes
Type of fastening	Engage (snap)
Monitoring window/light outlet	Yes
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt

Antimicrobial treatment	No
Colour	Titanium
With label area	No
With exchangeable lens/symbol	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Width	53 mm
Height	53 mm
Depth	12 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C

2 documents

Select all

3D Autocad

3D_LG-CT1412.stp ifc (4.14 Mo)

BIM Data

BIM-LEGRAND-CELIANE-2025-12-FRANCAIS.rvt rvt (179.44 Mo)

1 document

Select all

Agreement

Decl. UE RED-A 4269 A (0.45 Mo)
