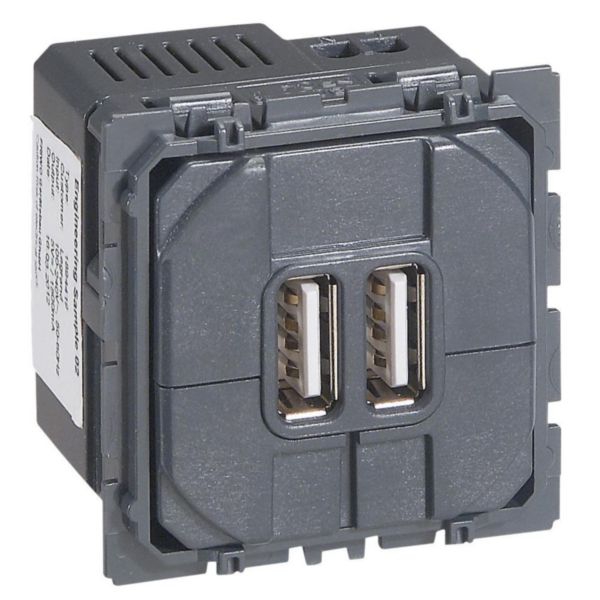

Céliane 2 USB charger A+A 3A 15W

Name: Céliane 2 USB charger A+A 3A 15W
SKU: 067462

Legrand

REF. 067462 EAN. 3245060674625

Compare You can only compare 4 products, you must remove 1 to add this one

Model	Other
Number of ports USB-A	2
Number of ports USB-C	0
Operating voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Output voltage (Min-Max)	5-5 V
Power consumption	0.068 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	Black
Device width	45 mm
Device height	45 mm
Device depth	40.5 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Built-in depth	33.5 mm
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	15
Supply current (Min-Max)	0.5-0.5 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²

2 documents

Select all

Technical Sheet

F01526FR-06.pdf pdf (0.3 Mo)

Technical Sheet

F01526EN-06.pdf pdf (0.3 Mo)

1 document

Select all

Agreement

Decl. UE RED-A 3844 A (0.14 Mo)
