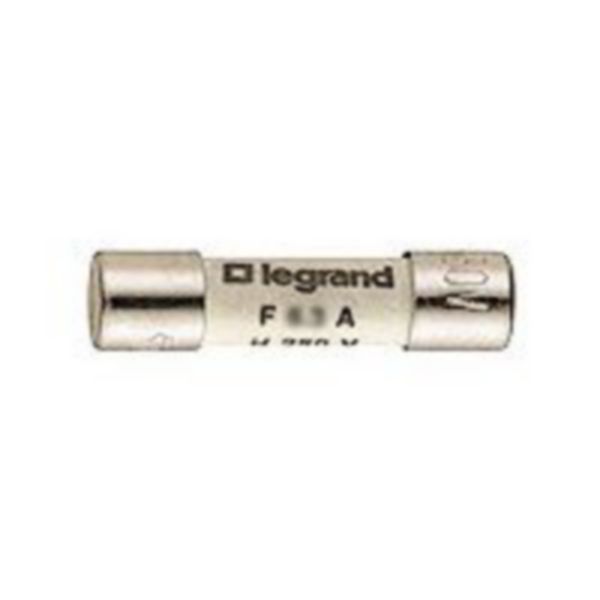

Cartridge fuse 5 x 20 mm - without indicator - 0.5 A

LEGRAND

Cartridge fuse 5 x 20 mm - without indicator - 0.5 A

REF. 010205 EAN. 3245060102050
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Rupture capacity 1500 A
  • Rated voltage 250V~
  • Conform to IEC 60127 - 2
Recommendation / Restriction
  • This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.Before carrying out the installation, read the instructions and take account of the product's specific mounting location.Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.Use only Legrand brand accessories.

The product's benefits

Installation
  • Compatible with Legrand fuse carriers Cat.No 005800 and 005802

Technical characteristics

Model Ceramic fuse
Size 5x20 mm
Rated current 0.5 A
Depth 20 mm
Width 5 mm
Voltage type AC
Utilization category according to IEC 60269 Other
Rated operating frequency (Min-Max) 50-60 Hz
Type of fuse status indicator Other
Release characteristic H
Power loss at rated current 0.3 W
Operating / setting temperature (Min-Max) -25-40 °C
Storage temperature (Min-Max) -40-70 °C

Documentation

2 documents
Technical Sheet
fa137bEN.pdf pdf (0.46 Mo)
Technical Sheet
fa137bfr.pdf pdf (0.15 Mo)
1 document
Catalogue Commercial Page
ex223001_0091.pdf pdf (0.09 Mo)
