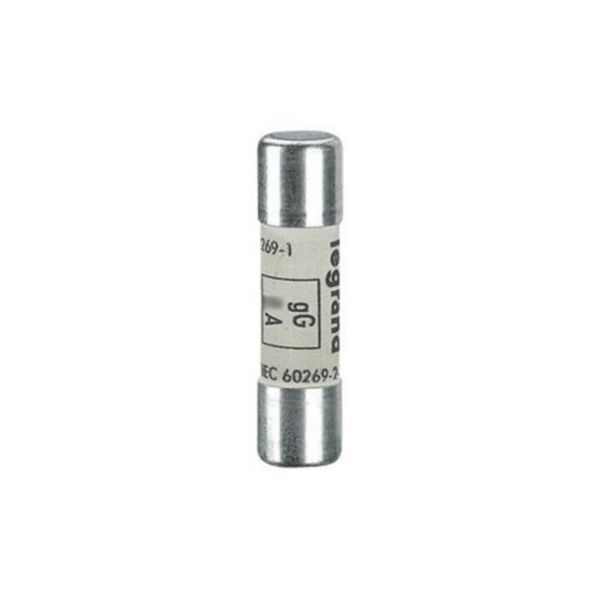

Cartridge fuse 10 x 38 mm - type gG - with indicator - 10 A

LEGRAND

Cartridge fuse 10 x 38 mm - type gG - with indicator - 10 A

REF. 013410 EAN. 3245060134105
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Rupture capacity 100000 A - Rated voltage 500V~
  • Dimension 10 x 38 mm.
  • Ceramic body and silver - plated contacts
  • With indicator of fuse status (operational / blown).
  • Conform to IEC/EN 60269-1 and 2, NFC 60-200.

The product's benefits

Installation
  • Compatible with Legrand fuse carriers SP 38.

Technical characteristics

Model Ceramic fuse
Size 10x38 mm
Rated current 10 A
Depth 38 mm
Width 10 mm
Voltage type AC/DC
Utilization category according to IEC 60269 GG
Rated operating frequency 42-62 Hz
Type of fuse status indicator Top fuse status indicator
Power loss at rated current 1.3 W
Operating / setting temperature -25-40 °C
Storage temperature -40-70 °C

Documentation

2 documents
Technical Sheet
F00192EN-10.pdf pdf (1.54 Mo)
Technical Sheet
F00192FR-10.pdf pdf (1.54 Mo)
3 documents
Catalogue Technical Page
ex223001_0263.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0261.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_0264.pdf pdf (0.05 Mo)
