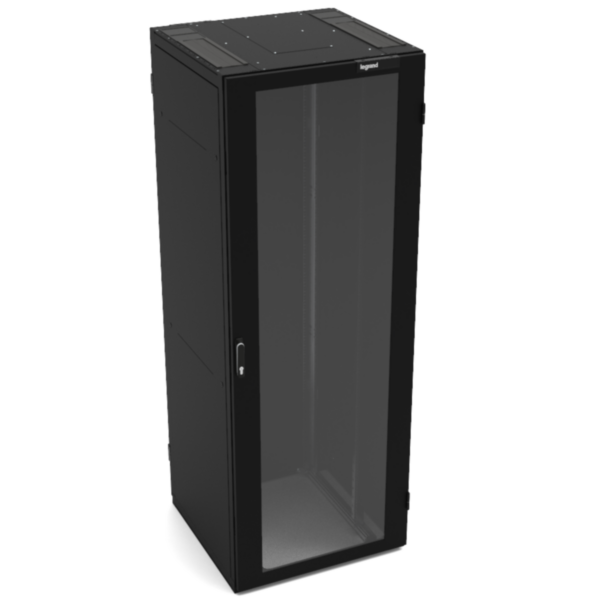

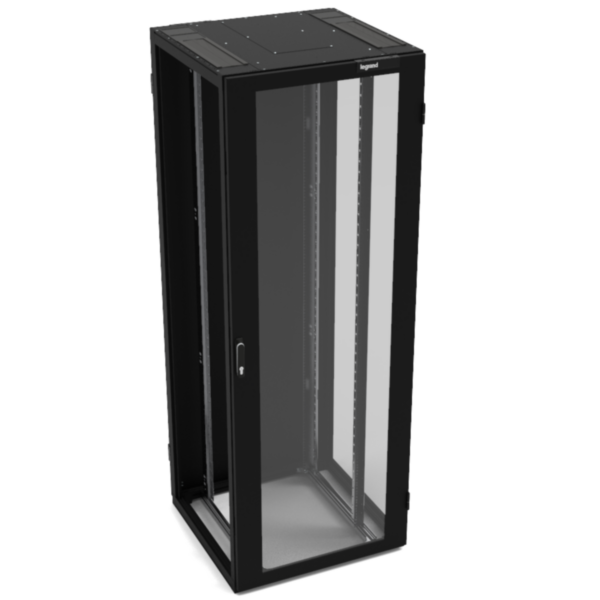

Cabling cabinet 19 inches wide glass front door and blind steel rear door 24U 800x800x1300mm supplied with side panels

Nexpand LEGRAND

Cabling cabinet 19 inches wide glass front door and blind steel rear door 24U 800x800x1300mm supplied with side panels

REF. 446430 EAN. 3414972237499
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Capacity 24U, 800mm width, 800mm depth and 1300mm height
  • Doors are fitted with a Fix - easy swivel handle with a EK333 locking to ensure security. Door can open 165° in case of bayed cabinets or 260° in case of stand - alone cabinets.
  • Light, solid and demountable aluminium frame with the capability to handle 1500kg of static load. Doors are fitted with a Fix - easy swivel handle with a EK333 locking to ensure security. Door can open 165° in case of bayed cabinets or 260° in case of stand - alone cabinets.
  • Cabinet equipped with 4 x 19 inches profiles including height indication. Threaded mounting rails in width, depth and height direction enable stepless adjustibility (for example cable management).
  • Roof: 3 cut-outs (the left and right ones have blindplates and brushes, the center one has a blind plate). Mounting rails implemented on the top of cabinet enable flexible adjustability of accessories. Power distribution can also be placed on top of the cabinet enabling power distribution through cabling and busbars.
Recommendation / Restriction
  • This server cabinet is intended for digital infrastructures. Delivered with side panels. It has a permissible load up to 1500kg. It can be integrated in installations complying with the following standards : EN 50173-1, EN 50174-1 & 2, C 90-480-1 & 2, ISO IEC 11801, NF C 15-100, IEC 60364-4-41

The product's benefits

Installation
  • Cabinet equipped with 4 leveling feet that can be adjusted.
Usage
  • Cabinet equipped with 4 x 19 inches profiles including height indication
Avantages
  • Optimal accessibility for cabling and optimal positioning for PDU’s up to 32A plugs shall fit.
  • Protected against solid objects larger than 12.5mm (IP20) and mechanical impact with an energy of 5 joules (IK08)
  • The textured polyester coating in the same color as cabinet provides an excellent resistance to corrosion and scratching

Technical characteristics

Mounting level Front and rear
Type of profile rail L-shaped
Number of doors 2
Type of ventilation None
Width 800 mm
Height 1177 mm
Depth 800 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 24
Max. load capacity 1500 kg
With roof plate Yes
With earthing Yes
With front door Yes
Material front door Glass
Front door locking system Two-point
With rear door Yes
Material rear door Steel
With glazed door Yes
With sidewall Yes
With base No
With vertical cable management No
Material Aluminium
Surface finishing Powder coating
Colour Black
Model With permanent frame
RAL-number 9005
Demountable Yes
Degree of protection (IP) IP20
