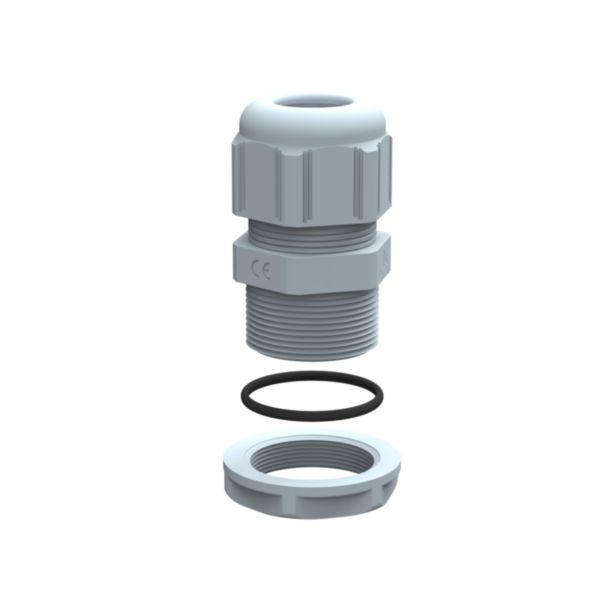

Name: Cable gland plastic - IP 68 - PG 9 - clamping capacity 5-8,5 mm - RAL 7001
SKU: 098021

Cable gland plastic - IP 68 - PG 9 - clamping capacity 5-8,5 mm - RAL 7001

LEGRAND

Cable gland plastic - IP 68 - PG 9 - clamping capacity 5-8,5 mm - RAL 7001

REF. 098021 EAN. 3245060980214

Compare You can only compare 4 products, you must remove 1 to add this one

Cable glands with clamping capacity for cable diameter 5 to 8,5 mm
Supplied with surface seal and locking nut mounted
Conform to EN 62 444
Locking part consisting of flexible blades which exert strong pressure on the cable thus giving the product excellent tensile strength

Thread type	PG
Nominal thread size metric/PG	15.2
Pitch thread	1.588 mm
Thread length	33 mm
Wrench width	33 mm
Suitable for cable diameter	12-18 mm
Material	Plastic
Material quality	Polyamide (PA)
Surface protection	Untreated
Halogen free	Yes
Glass-fibre reinforced	No
Degree of protection (IP)	IP68
Shock resistant	Yes

Colour	Grey
RAL-number	7001
Bend radius protection/trumpet flare	No
With locknut	Yes
Model	Straight
Flat cable coupling	No
Type of sealing	Sealing ring
Separable screw gland	No
Operating / setting temperature	-20-80 °C
Explosion-tested version	No
For Ex-zone gas	None
For Ex-zone dust	None
Storage temperature	-20-80 °C

2 documents

Select all

Technical Sheet

F03595EN-01.pdf pdf (1.19 Mo)

Technical Sheet

F03595FR-01.pdf pdf (1.11 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0446.pdf pdf (0.07 Mo)

Catalogue Technical Page

ex223001_0447.pdf pdf (0.06 Mo)

1 document

Select all

3D Autocad

098021.dwg dwg (0.11 Mo)
