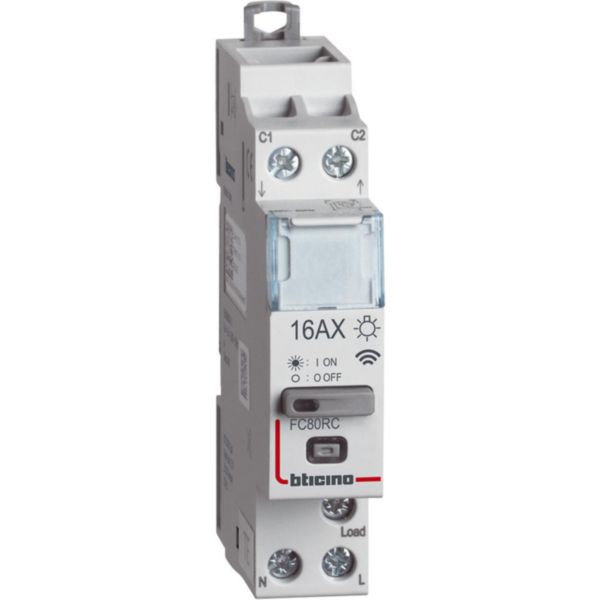

Btdin with Netatmo Smart Latching relay

Name: Btdin with Netatmo Smart Latching relay
SKU: BT-FC80RC

Btdin with Netatmo Bticino

REF. BT-FC80RC EAN. 8005543647844

Compare You can only compare 4 products, you must remove 1 to add this one

Function	Electronic switch
Mounting method	DIN rail
Width in number of modular spacings	1
Built-in depth	44 mm
Number of contacts as normally open contact	1
Rated switch current	16 A
Supply voltage (Min-Max)	240-240 V
Voltage type (supply voltage)	AC
Max. incandescent lamp load	3840 W
Max. load fluorescent lamp	3000 VA
Max. switching current (cos phi = 0.6)	16 A
Suitable for manual operation	Yes
Width	17.8 mm

Height	95.9 mm
Depth	70.1 mm
degree of impact strength (IK)	IK04
Degree of protection (IP)	IP3X
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-40-70 °C
Electric supplying direction	Not applicable
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Halogen free	Yes
Connection type	Screwed terminal , Cable
Terminals capacity (Min-Max)	0.75-6 mm²
Label space/information surface	Yes

2 documents

Select all

Instruction Use

LE11504AC.pdf pdf (2.1 Mo)

Technical Sheet

IDP00312EN_02.pdf pdf (0.47 Mo)

3 documents

Select all

PEP

LGRP-02215-V01.01-EN.pdf pdf (0.85 Mo)

Agreement

OC / CB-FR_723020 (0.48 Mo)

Agreement

Decl. UE RED-4067 A (0.2 Mo)
