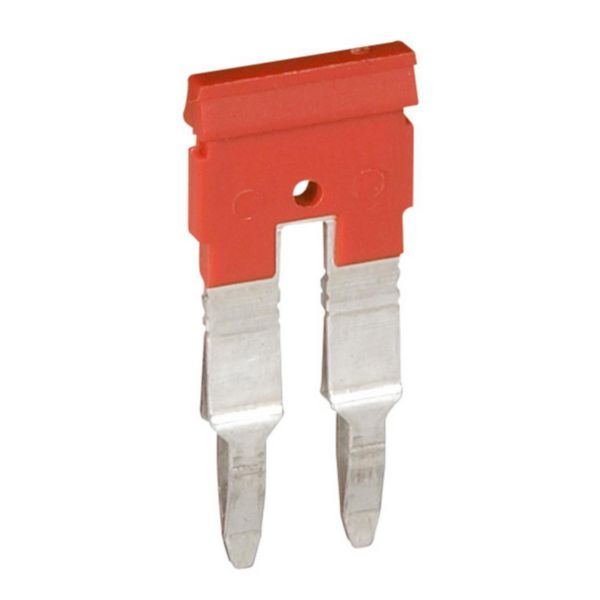

Bridging combs for 2 blocks with 8mm pitch - for screw and spring terminal blocks

Viking 3 LEGRAND

Bridging combs for 2 blocks with 8mm pitch - for screw and spring terminal blocks

REF. 037508 EAN. 3245060375089
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • For 2 blocks with 8mm pitch
  • Isolated and breakable to lentght for all the configurations.
  • Consecutive of alternating connection
Recommendation / Restriction
  • Installation recommended for electrical connection in industrial and tertiary cabinets and enclosures.

The product's benefits

Installation
  • Quick installation thanks to a front mounting with automatic insertion without screw.
Usage
  • Isolated combs retain the isolation voltages of connecting terminal blocks.

Technical characteristics

Model Push-in type jumper bar
Number of bridged clamps 2
Rated current In 41 A
Rated voltage 800 V
Insulated Yes
With shock protection Yes
Mounting method Pluggable
Modular spacing 8 mm
Colour Red

Documentation

1 document
Instruction Use
042515-02.pdf pdf (0.24 Mo)
