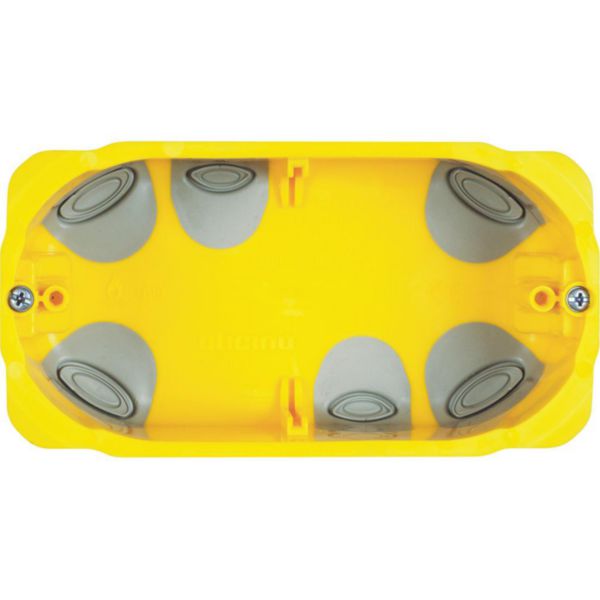

Box - plasterboard box 4 mod

Name: Box - plasterboard box 4 mod
SKU: BT-PB504N

BTICINO

REF. BT-PB504N EAN. 8005543592373

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Hollow wall
Shape	Rectangular
Construction type	Device connection box (round/square)
Model	Single
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	132 mm
Width	71 mm
Depth (Min-Max)	52-52 mm
Inner depth	50 mm
For number of electric fittings	4
Mounting switching equipment	Screwing
With screws	Yes
Number of non-adjustable device fixing lugs	0
Number of adjustable device fixing lugs	2
Housing feed-through by break-out opening	No
Housing feed-through by seal membrane	Yes
Housing feed-through by nozzle	Yes
Housing feed-through by step membrane	No
For tube diameter	20/25 mm
Suitable for cable diameter (Min-Max)	1-2.5 mm
Pipe locking	No
Pipe locking optional	No
Inlet from the rear	Yes
Number of inlets	6

Number of included spouts	4
Material	Plastic
Halogen free	No
Surface protection	Untreated
Colour	Yellow
Degree of protection (IP)	IP40
Cover model	None
Transparent cover	No
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	Yes
Max. conductor cross section	2.5 mm²
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
Special application	None
With partition panel	No
Compliant with BS 4662	No
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-60 °C
Cable support	Not applicable

1 document

Select all

Technical Sheet

DSH BT-PB50 F02469EN00.pdf pdf (0.36 Mo)

3 documents

Select all

PEP

LGRP-01226-V01.01-EN.pdf pdf (0.64 Mo)

Agreement

OC / CB-FR_723187 (0.5 Mo)

Agreement

IMQ-CA02.06163 (0.5 Mo)
