Body joint with coupler only for DLP universal trunking 105x50 with a 65mm cover

DLP LEGRAND

Body joint with coupler only for DLP universal trunking 105x50 with a 65mm cover

REF. 010696 EAN. 3245060106966

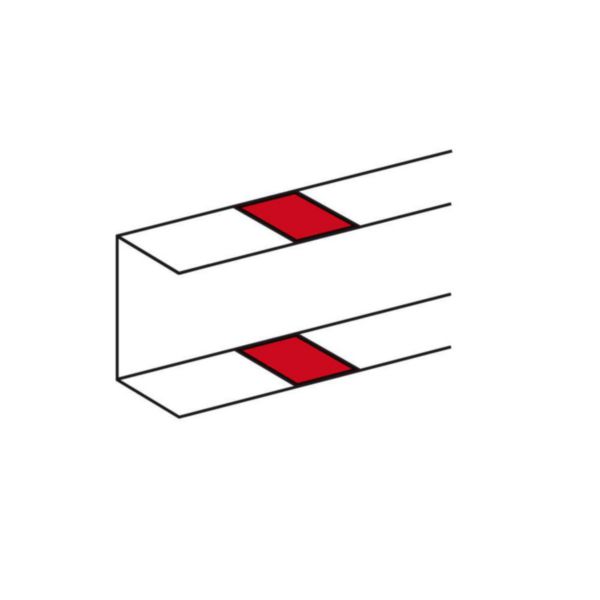

Cable routing accessory for one-piece trunking, this white DLP body joint with coupler clips on 50x105mm duct to align sections and maintain the protection index. It can be cut to length and improves aesthetics.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Cable routing accessory for one-piece trunking, this white DLP body joint with coupler clips on 50x105mm duct to align sections and maintain the protection index. It can be cut to length and improves aesthetics.

Product characteristics
  • Can be cut to the desired length
  • Respect the protection index
  • Improvement of aesthetics (covering of the cut)
  • Colour: white

The product's benefits

Installation
  • Body joint with coupler clips on the trunking
Usage
  • To simplify the offer the joints can be mounted on bodies of different thicknesses.

Technical characteristics

Suitable for wall duct width 105 mm
Suitable for depth of wall duct 50 mm
Cover width 65 mm
Model Duct joint cover
Shape Symmetric
Type of fastening Snap on
Material Plastic
Material quality Acrylonitrile butadiene styrene (ABS)
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Colour White
RAL-number 9003

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
0.022
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)
