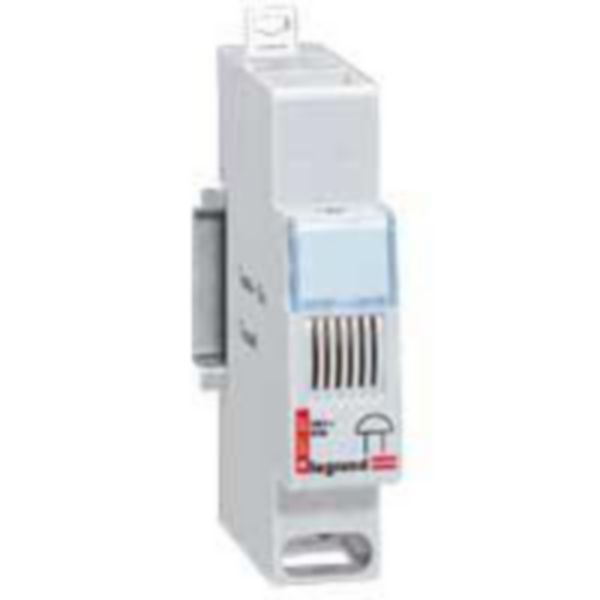

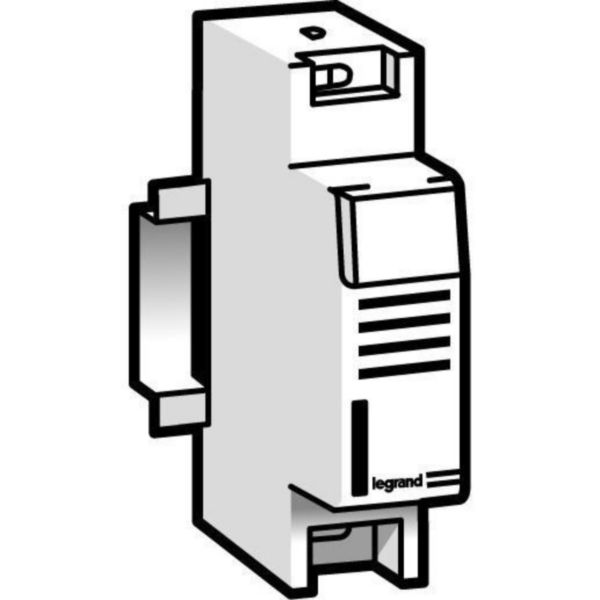

Bell 230 V~ - 4/5 VA - 1 module

Name: Bell 230 V~ - 4/5 VA - 1 module
SKU: 004101

LEGRAND

REF. 004101 EAN. 3245060041014

Compare You can only compare 4 products, you must remove 1 to add this one

Transformers, buzzers and bells
Buzzers and bells - 50 Hz AC - Connection by screw terminals, with label holder - Allow insertion of supply busbars - Caution : remove lamps from illuminated push - buttons when used with Cat.Nos 0 041 01 Bells - Voltage : 8 / 12 V~ - Power : 4 / 5 VA - Consumption : 360/420 mA - Acoustic power at 1 m : 80/84 dB - Number of modules : 1

Housing colour	Grey
Housing material	Plastic
Nominal voltage (Min-Max)	12-12 V
Type of current	AC
Built-in battery	No
Electricity consumption (Min-Max)	0.42-0.42 A
Loudness	84 dB
Wireless	No
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Width in number of modular spacings	1
Width	17.7 mm
Height	77.8 mm
Depth	94.8 mm
degree of impact strength (IK)	IK05
Operating / setting temperature (Min-Max)	-10-60 °C

Storage temperature (Min-Max)	-10-60 °C
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	Yes
RAL-number	7035
Halogen free	No
Antimicrobial treatment	No
Terminals capacity (Min-Max)	1.5-10 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	Yes
With complemantary luminous signal	No
Contains Batteries and/or Accumulator	No
Number of ringtones	1
Connected object	No
With voice command	No
Programmable	No
Connectable by Internet box	No

1 document

Select all

Catalogue Commercial Page

ex223001_0110.pdf pdf (0.1 Mo)

1 document

Select all

3D Autocad

004107.dwg dwg (0.12 Mo)
