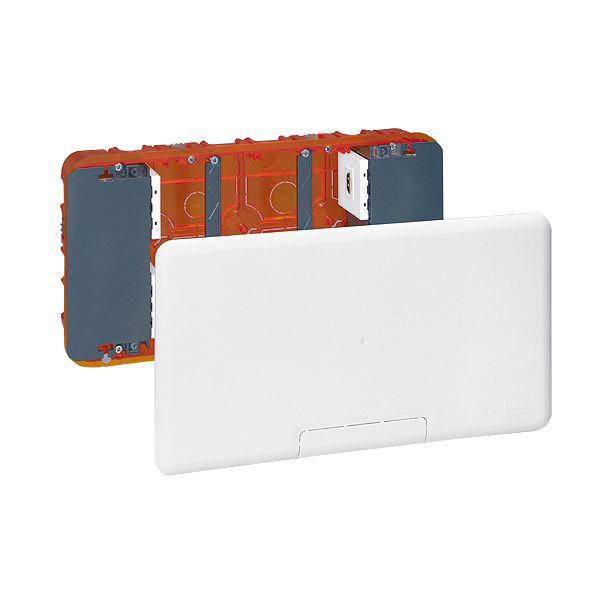

Name: Batibox - Multimedia box - max. capacity 2 x 5 modules - dim. 285 x 142 mm
SKU: 080195

Batibox - Multimedia box - max. capacity 2 x 5 modules - dim. 285 x 142 mm

Batibox LEGRAND

Batibox - Multimedia box - max. capacity 2 x 5 modules - dim. 285 x 142 mm

REF. 080195 EAN. 3245060801953

Compare You can only compare 4 products, you must remove 1 to add this one

Batibox multimedia boxes - multi-material flush-mounting boxes for connecting wall - mounted LCD or plasma screens - Supplied with 2 Mosaic programme 5 - module supports for flush-mounting high/low current functions (e.g. : 2P+E, TV sockets, HDMI, RCA sockets, etc.) - Supplied without sockets - Can be installed in advance to reserve the future space for a screen - Extra - slim cover with cut - out panel for cable outlet - Equipped with a site protective cover - Storage space for cords - Supplied with retaining bar for cords - Suitable for solid or cavity walls. Depth : 50 mm - Max. capacity : 2 x 5 modules - Dimensions : 285 x 142 mm

Mounting method	Other
Shape	Rectangular
Construction type	Cable junction box
Model	Other
Width	154 mm
Mounting switching equipment	Screw or spread out
With screws	Yes
For tube diameter	20/25 mm
Suitable for cable diameter (Min-Max)	20-25 mm
Pipe locking	No
Inlet from the rear	Yes
Number of inlets	6
Material	Plastic
Surface protection	Untreated
Colour	Orange

Degree of protection (IP)	IP20
Cover model	None
Cover attachment	Other
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Max. conductor cross section	0 mm²
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-60 °C
