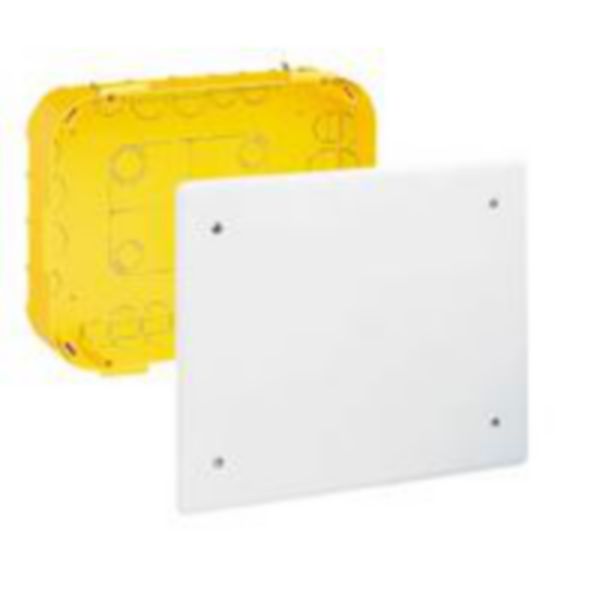

Name: Batibox - Junction box - with cover and screws - 160x105x40 mm - for dry partition
SKU: 089373

Batibox - Junction box - with cover and screws - 160x105x40 mm - for dry partition

Batibox LEGRAND

Batibox - Junction box - with cover and screws - 160x105x40 mm - for dry partition

REF. 089373 EAN. 3245060893736

Compare You can only compare 4 products, you must remove 1 to add this one

Junction boxes - Supplied with cover and screws - Knockout base - Box ext. dim. : 160 x 105 x 40 mm - Cover dim. : 190 x 135 mm

Mounting method	Hollow wall
Shape	Rectangular
Construction type	Cable junction box
Model	Single
Provided with revolving ring	No
Couplable	No
Equipped with	None
Length	190 mm
Width	135 mm
Inner depth	40 mm
For number of electric fittings	0
With screws	Yes
Housing feed-through by break-out opening	Yes
Housing feed-through by seal membrane	No
Housing feed-through by step membrane	No
For tube diameter	Other
Suitable for cable diameter (Min-Max)	16-25 mm
Pipe locking	No
Pipe locking optional	No
Inlet from the rear	Yes
Number of inlets	12

Material	Plastic
Halogen free	Yes
Surface protection	Untreated
Colour	Yellow
Degree of protection (IP)	IP20
Cover model	Construction protective cover
Transparent cover	No
Cover attachment	Screwed
Sealable	No
Circuit integrity	None
With screening	No
Air tight	No
Number of poles of the clamp	0
Clamp position fixed	No
Luminaire hook mounting	No
Nozzle	None
Special application	None
degree of impact strength (IK)	IK02
Operating / setting temperature (Min-Max)	-5-40 °C
Storage temperature (Min-Max)	-5-60 °C
