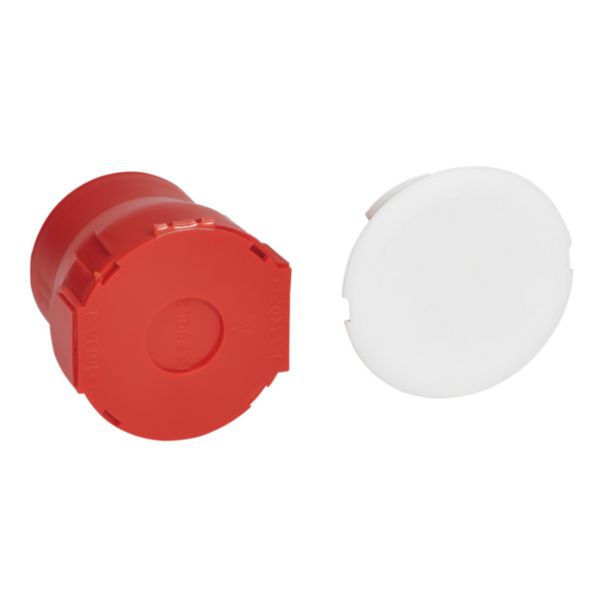

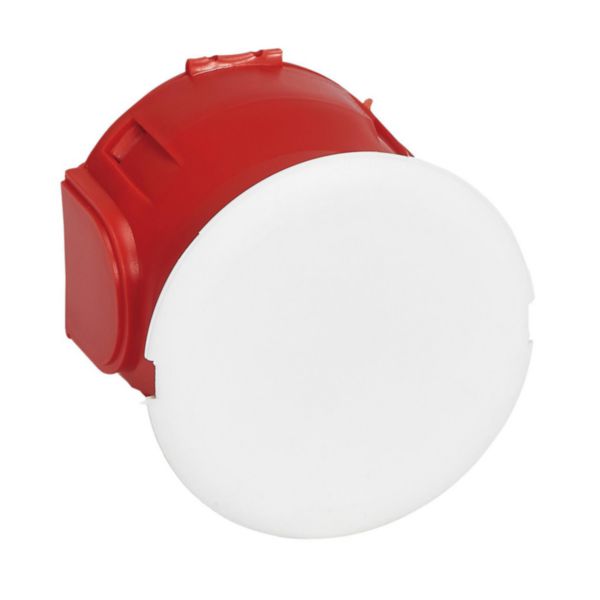

Batibox - Flush-mounting box - with cover for strip light - masonry

Batibox LEGRAND

Batibox - Flush-mounting box - with cover for strip light - masonry

REF. 089246 EAN. 3245060892463
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Luminaire box with coverFor striplights - Ø40 mm - depth 40 mm

Technical characteristics

Mounting method Facing brickwork
Shape Round
Construction type Device connection box (round/square)
Model Single
Provided with revolving ring No
Couplable No
Equipped with Other
Diameter 50 mm
Depth (Min-Max) 41-41 mm
Inner depth 40 mm
For number of electric fittings 0
With screws Yes
Housing feed-through by break-out opening Yes
Housing feed-through by seal membrane No
Housing feed-through by nozzle Yes
Housing feed-through by step membrane No
For tube diameter 16/20 mm
Pipe locking No
Pipe locking optional No
Inlet from the rear No
Number of inlets 2
Number of included spouts 0
Material Plastic
Halogen free Yes
Surface protection Untreated
Colour Red
Degree of protection (IP) IP20
Cover model Construction protective cover
Transparent cover No
Cover attachment Snapped on
Sealable No
Circuit integrity None
With screening No
Air tight No
Number of poles of the clamp 0
Luminaire hook mounting No
Nozzle None
Special application None
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -5-60 °C
Cable support Not applicable
