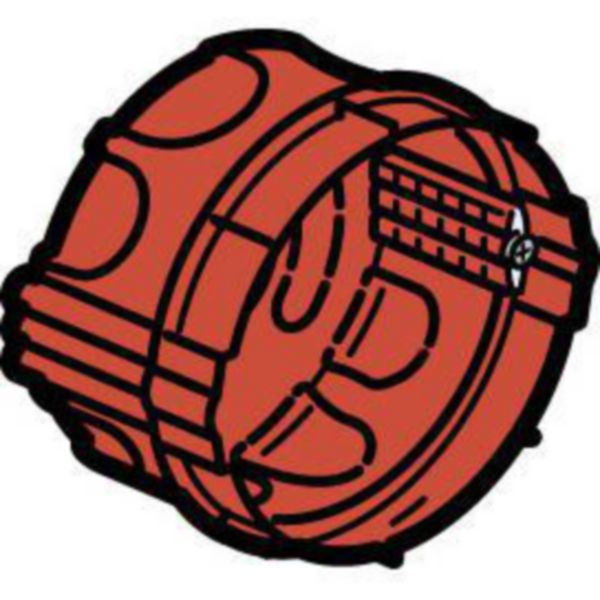

Batibox - Flush mounting box - round 1 gang depth 40 mm - screws - for masonry
Batibox
LEGRAND
Batibox - Flush mounting box - round 1 gang depth 40 mm - screws - for masonry
REF. 080108
EAN.
3245060801083
Universal box and flush-mounting boxes for masonry
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Mounting method | Facing brickwork |
|---|---|
| Shape | Round |
| Construction type | Device connection box (round/square) |
| Model | Single |
| Provided with revolving ring | No |
| Equipped with | None |
| Diameter | 67 mm |
| Length | 60 mm |
| Depth | 30-40 mm |
| Inner depth | 40 mm |
| For number of electric fittings | 2 |
| Mounting switching equipment | Screwing |
| With screws | Yes |
| For tube diameter | Other |
| Suitable for cable diameter | 16-20 mm |
| Pipe locking | No |
| Inlet from the rear | Yes |
| Number of inlets | 6 |
| Material | Plastic |
|---|---|
| Halogen free | Yes |
| Surface protection | Untreated |
| Colour | Red |
| Degree of protection (IP) | IP20 |
| Cover model | None |
| Cover attachment | Other |
| Sealable | No |
| Circuit integrity | None |
| With screening | No |
| Air tight | Yes |
| Number of poles of the clamp | 0 |
| Clamp position fixed | No |
| Luminaire hook mounting | No |
| Nozzle | None |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-60 °C |
Documentation
1 document
Catalogue Commercial Page
3 documents
PEP
Agreement
NF App Domestic-NF012_3660
(0.61 Mo)
Agreement
OC / CB-FR_707397/A1
(0.52 Mo)
