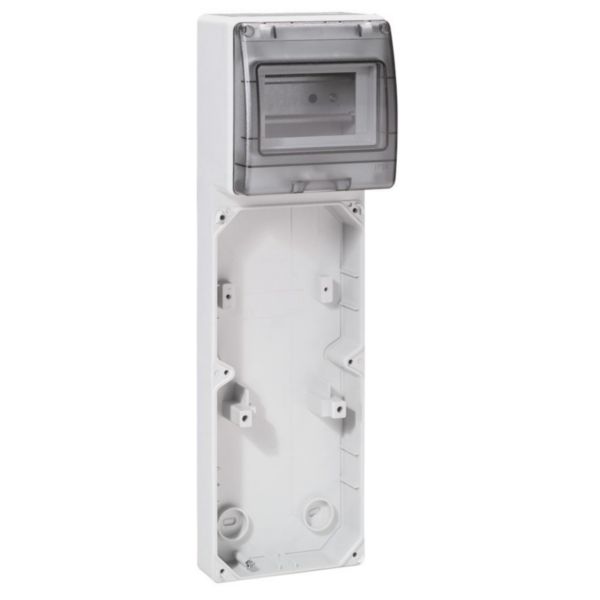

Base up to 3 sockets for combined unit P17 - 16 A - 421 x 125 mm

P 17 Tempra LEGRAND

Base up to 3 sockets for combined unit P17 - 16 A - 421 x 125 mm

REF. 057720 EAN. 3245060577209
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • P17 Tempra combined units to be composed - IK 08 according to IEC 62262 - Self - extinguishing : 650 °C - Max. IP 66 Combined units height 280 mm to 501 mm Base for 280 x 125 mm faceplates - max. IP 66 - Base up to 3 sockets 16 A - Rail 5 modules 17.5 mm - External dimensions (Height x Width) : 421 x 125 mm
Recommendation / Restriction
  • Not suitable for charging electric vehicles

Technical characteristics

Type of accessory/spare part Other
Suitable for CEE 16 A

Documentation

2 documents
Technical Sheet
F00140FR-05.pdf pdf (1.34 Mo)
Technical Sheet
F00140EN-05.pdf pdf (1.34 Mo)
1 document
3D Autocad
057720.dwg dwg (0.09 Mo)
