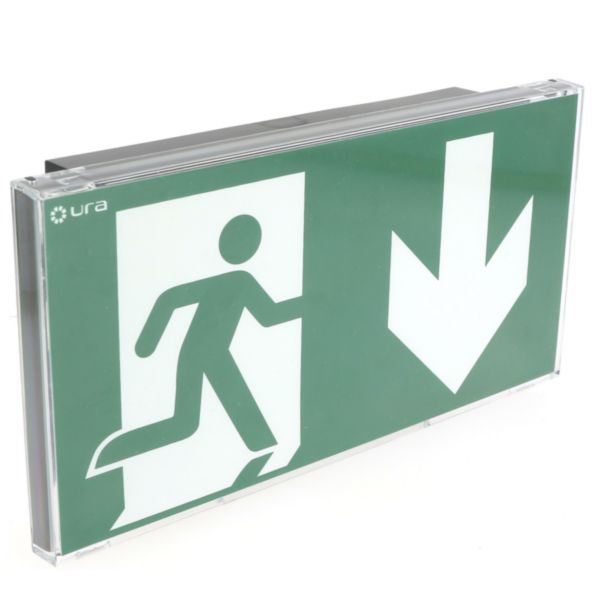

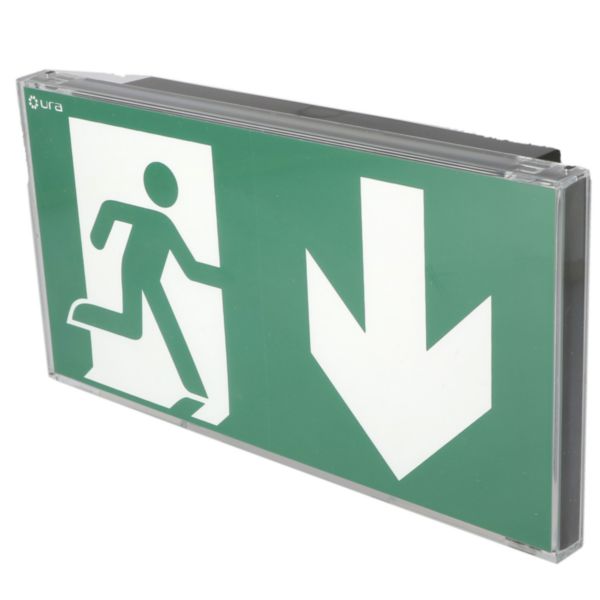

Name: BAES+BAEH URALIFE V Black 45LM-1H 8LM-5H addressable - Wall mounting
SKU: 118349V

BAES+BAEH URALIFE V Black 45LM-1H 8LM-5H addressable - Wall mounting

URA

BAES+BAEH URALIFE V Black 45LM-1H 8LM-5H addressable - Wall mounting

REF. 118349V EAN. 3613400171699

Compare You can only compare 4 products, you must remove 1 to add this one

Mounting method	Wall surface mounted
Function	Escape route lighting/signage
Suitable for labelling type	Insert sheet/plate
Type of indicator	Single-sided
With pictogram	Yes
Suitable for standby switching	Yes
With remote switch connection	Yes
Supplied remote control	No
Emergency function monitoring system	Other
Emergency power supply system	Peripheral (individual battery)
Battery technology	Lithium-ion
Type of lithium-ion battery	Lithium iron phosphate (LiFePO4)
With heating element for battery	No
Lamp type	LED not exchangeable
With light source	Yes
Suitable for number of light sources	18
Lamp holder	None
Number of lighting heads	1
Housing material	Plastic
RAL-number housing	9017
Housing colour	Black
Material cover	Plastic, transparent
Voltage type	AC
Nominal voltage (Min-Max)	230-230 V
Nominal current (Min-Max)	3-16 mA
Type of control gear	LED operating device current-controlled
Exchangeable control gear	Yes
Light distributor	Diffuser lens/optic/panel
Constant light output (CLO)	Yes
Degree of protection (IP)	IP43
degree of impact strength (IK)	IK07
Protection class according to IEC 61140	II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Luminous flux in emergency mode	45 lm
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)	45-45 lm
Max. system power	0.9 W
Luminous flux in standby mode	3 lm
Colour temperature (Min-Max)	6500-6500 K
Recognition distance	19.6 m

Width	106 mm
Height/depth	38 mm
Length	206 mm
Type of wiring	Suitable for loop-through wiring
Number of poles	4
Conductor cross section	1.5 mm²
Connection type	Other
Connectable conductor cross section (Min-Max)	1.5-1.5 mm²
Operating / setting temperature (Min-Max)	0-35 °C
Storage temperature (Min-Max)	-20-45 °C
Frequency (Min-Max)	50-60 Hz
Standby consumption	4 mA
Mandatory neutral	Yes
Terminal marking indication	Yes
Halogen free	Yes
Cable nature for connection	Rigid
With complemantary luminous signal	No
Maximum Input cable diameter	13 mm
Horizontal fixing center distance (Min-Max)	90-100 mm
Cable support	Other
Cable tie suitable with	Not applicable
Control mode	Wired
Contains Batteries and/or Accumulator	Yes
Addressable	Yes
IEC code (Pack1)	1IFpR15/51
Battery ou Accumulator (Pack1)	Accumulator (rechargeable)
Element Composition (Pack1)	Lithium-Iron-Phosphate
Number of Pack 1	2
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	20 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	No
Programming way	Not applicable
With voice command	No
Programmable	No
Connectable by Internet box	No
Product use function	Emergency Lighting
