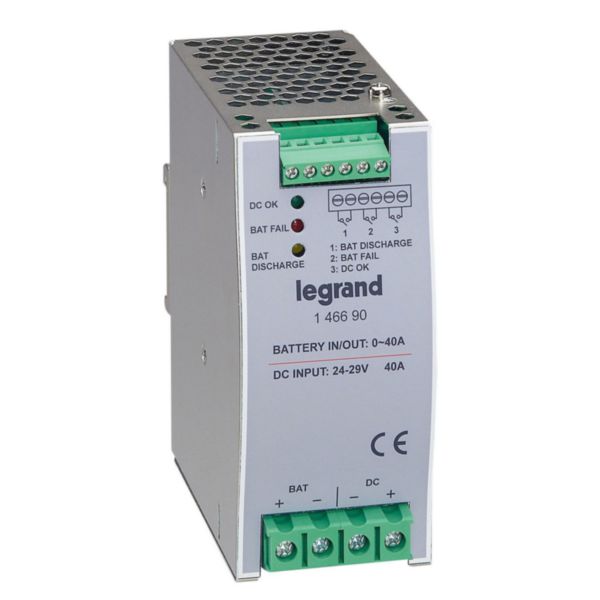

Backup function modules for stabilised switched modules power supply -max rating 40 A

Name: Backup function modules for stabilised switched modules power supply -max rating 40 A
SKU: 146690

LEGRAND

REF. 146690 EAN. 3414970543639

Compare You can only compare 4 products, you must remove 1 to add this one

Stabilised switched mode power supplies - additional functions - Used to ensure optimum continuity of service for critical functions
Backup functionBackup function module - In conjunction with a battery pack, ensures continuity of service of a 24 V= system in the event of a power supply failure - Relay contacts and LED status indicators (normal operation, battery failed and battery discharged) - For mounting on a symmetrical rail depth 7.5 mm and 15 mm - Input voltage : 24 to 29 V= - Max. rating : 40 A - Width : 56 mm

Type of accessory/spare part	Other
Width	56 mm

Height	125 mm
Depth	100 mm

3 documents

Select all

Technical Sheet

F02180EN-00.pdf pdf (0.34 Mo)

Technical Sheet

FT-F02180-FR-00.pdf pdf (0.7 Mo)

Instruction Use

LE08163AA-01.pdf pdf (0.44 Mo)

4 documents

Select all

Catalogue Technical Page

ex223001_0510.pdf pdf (0.03 Mo)

Catalogue Technical Page

ex223001_0509.pdf pdf (0.03 Mo)

Catalogue Commercial Page

ex223001_0506.pdf pdf (0.08 Mo)

Catalogue Technical Page

ex223001_0507.pdf pdf (0.06 Mo)
