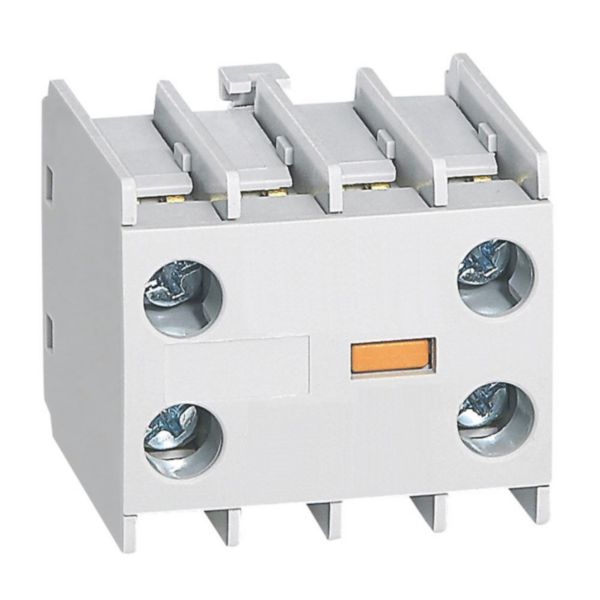

Auxiliary contact 1NO1NC for CTX3 mini and control relays - front mounting

CTX³ LEGRAND

Auxiliary contact 1NO1NC for CTX3 mini and control relays - front mounting

REF. 417150 EAN. 3414970404718
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 1NO + 1NC Auxiliary contact unit (Ith = 10A) NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard
  • Screw terminals capacity : 2 x 1,5mm² to 2mm²
  • Minimum switching voltage : 24V DC Minimum switching current : 10mA
  • This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendation / Restriction
  • Product specially designed for tertiary and industrial installations. Read the instructions before installing this product.

The product's benefits

Installation
  • Fixing on the front of the contactor

Technical characteristics

Number of contacts as change-over contact 0
Number of contacts as normally open contact 1
Number of contacts as normally closed contact 1
Rated operation current Ie at AC-15, 230 V 3 A
Type of electric connection Screw connection
Model Clip-on
Mounting method Front fastening

Documentation

2 documents
Instruction Use
LE07420AB.pdf pdf (4.77 Mo)
Technical Guide
2 documents
Catalogue Commercial Page
ex223001_0280.pdf pdf (0.09 Mo)
Catalogue Technical Page
ex223001_0281.pdf pdf (0.07 Mo)
1 document
3D Autocad
417150.dwg dwg (0.08 Mo)
