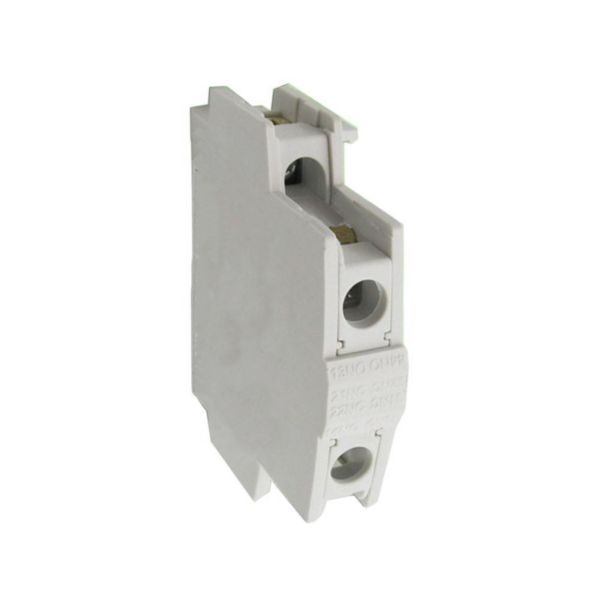

Auxiliary contact 1NO1NC for CTX3 4P 40A to 135A - side mounting

Name: Auxiliary contact 1NO1NC for CTX3 4P 40A to 135A - side mounting
SKU: 416849

CTX³ LEGRAND

REF. 416849 EAN. 3414970408587

Compare You can only compare 4 products, you must remove 1 to add this one

1NO + 1NC Auxiliary contact unit (Ith = 10A) NC auxiliary contact meets the definition of mirror contact according to IEC 60947 - 4 - 1 standard
Screw terminals capacity : 2 x 1mm² to 2,5mm²
Mounting on the side of CTX3 4P from 40A to 135A
Minimum switching voltage: 17V DC Minimum switching current: 5mA
The device complies with substance-restriction requirements and has been designed in an environmentally conscious process.

Product specially designed for tertiary and industrial installations. Read the instructions before installing this product.

Number of contacts as change-over contact	0
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
Rated operation current Ie at AC-15, 230 V	3 A
