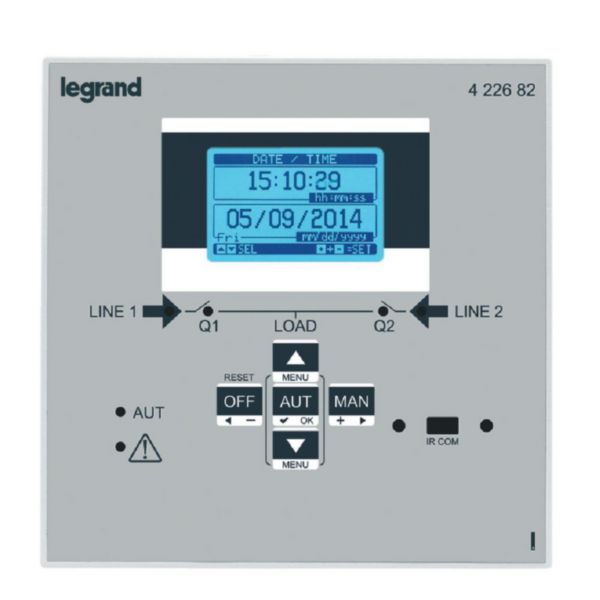

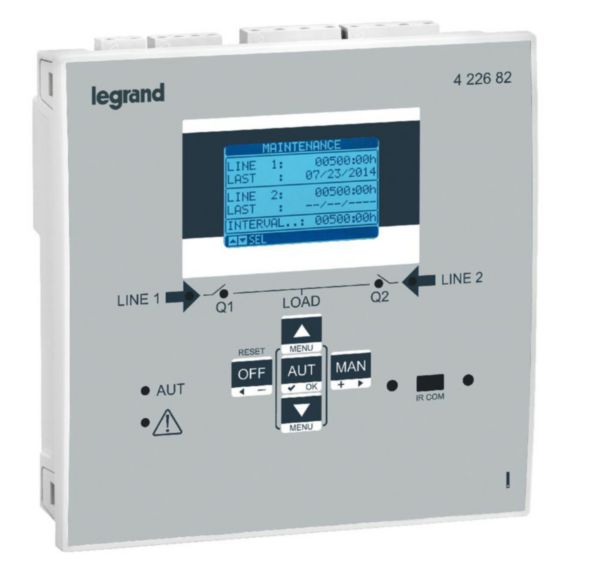

Name: Automatic control switch control unit between two sources for DPX3 and DMX3 circuit breaker and CTX3 contactors
SKU: 422682

Automatic control switch control unit between two sources for DPX3 and DMX3 circuit breaker and CTX3 contactors

ATS LEGRAND

Automatic control switch control unit between two sources for DPX3 and DMX3 circuit breaker and CTX3 contactors

REF. 422682 EAN. 3414970767813

Compare You can only compare 4 products, you must remove 1 to add this one

For advanced management of 2 breakers
Interface LCD display, IR communication port on the Front panel for connection of USB or WiFi modules
Power supply : 12 or 48 Vdc ; 100 - 240 Vac
IP20
Can be configured with the help of front panel touchkeys or of the Legrand dedicated software

DPX3 platform has been developed to give a new solution ofprotection devices for a more precise approach in power installations inorder to offer the correct answer for different project needs.

DPX3 platform provide a complete "project" approach in premiummarket segment, offering a range completely suitable for high powerapplication

DPX3 630 is the answer for the competition in the project sub-segment.A unique size for all versions (thermal magnetic, electronic with or without measure).Earth leakage fetures can be achieved by adding a dedicated module at the bottom of the breaker itself.

Type of accessory/spare part	Control cable connection

Automatic control switch control unit between two sources for DPX3 and DMX3 circuit breaker and CTX3 contactors
