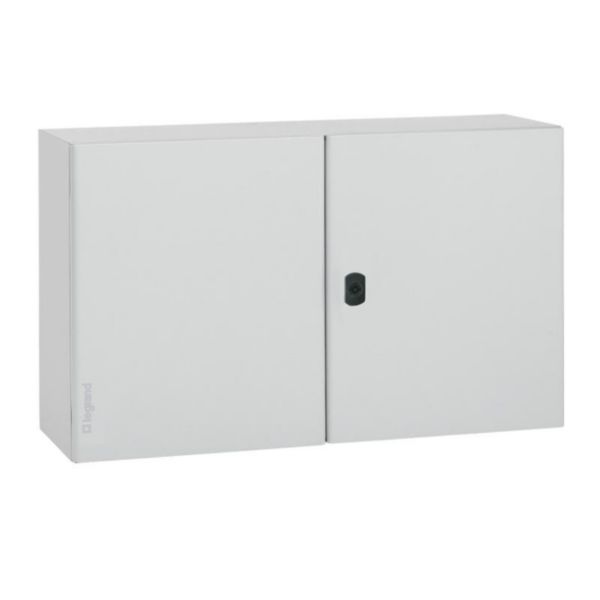

Name: Atlantic steel cabinet 800x1000x300mm - IP55 IK10
SKU: 036980

Atlantic steel cabinet 800x1000x300mm - IP55 IK10

Atlantic LEGRAND

Atlantic steel cabinet 800x1000x300mm - IP55 IK10

REF. 036980 EAN. 3414970696892

Compare You can only compare 4 products, you must remove 1 to add this one

IP 55 according to the standard EN/IEC 60529 : protected against dust and against jets of water from all directions
Excellent resistance to corrosion and chemical agents thanks to textured polyester coating : 1000h resistance to salt spray
One-piece welded body, reversible door, equipped with a cable - entry plate
RAL 7035 suitable for industrial environments

Joinable cabinets. Reversible door. Double-bar lock.Equipped with universal lugs at the rear of the cabinets to facilitate the installation of accessoriesAutocentric of equipments

Can be equipped with a wide range of dedicated accessories : plain or perforated plates, plinths, cable-entry plates, plain or glass doors, etc.

Mounting method	Surface mounted
Type of covering	Door
Cover model	Closed
Type of door	Double
Transparent cover/door	No
With lock	Yes
Height	800 mm
Width	1000 mm
Depth	300 mm
Built-in depth	305 mm
Inner depth	280 mm
Material plate thickness cabinet	1.25 mm
Material plate thickness door/cover	1.8 mm

Colour	Grey
RAL-number	7035
Number of openings for flange plates	2
Extension possible	No
Housing material	Steel
Surface protection	Powder coating
With mounting plate	Yes
Suitable for outdoor use	Yes
Suitable for lightning protection	No
Degree of protection (IP)	IP55
Protection class according to IEC 61140	I
degree of impact strength (IK)	IK10
Circuit integrity	Other
