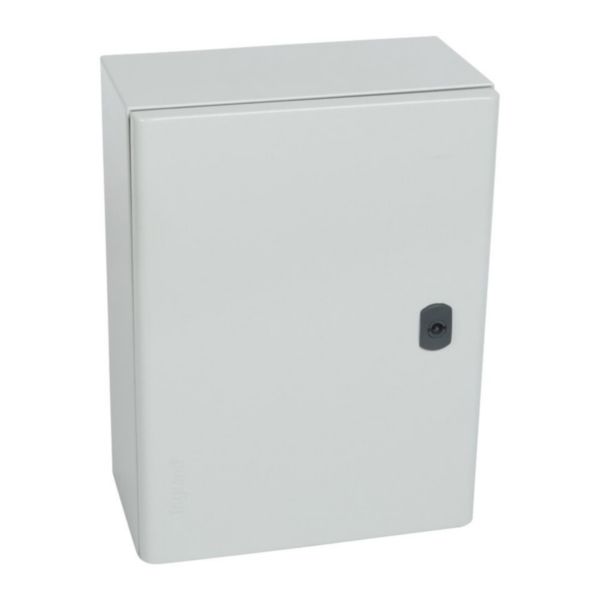

Atlantic steel cabinet 400x300x160mm - IP66 IK10

Name: Atlantic steel cabinet 400x300x160mm - IP66 IK10
SKU: 036912

Atlantic LEGRAND

REF. 036912 EAN. 3414970696465

Compare You can only compare 4 products, you must remove 1 to add this one

IP 66 according to the standard EN/IEC 60529 : completely protected against dust and against jets of water of similar force to heavy seas
Excellent resistance to corrosion and chemical agents thanks to textured polyester coating : 1000h resistance to salt spray
One-piece welded body, reversible door, equipped with a cable - entry plate
RAL 7035 suitable for industrial environments

Joinable cabinets. Reversible door. Double-bar lock.Equipped with universal lugs at the rear of the cabinets to facilitate the installation of accessoriesAutocentric of equipments

Can be equipped with a wide range of dedicated accessories : plain or perforated plates, plinths, cable-entry plates, plain or glass doors, etc.

Mounting method	Surface mounted
Type of covering	Door
Cover model	Closed
Type of door	Single
Transparent cover/door	No
With lock	Yes
Height	400 mm
Width	300 mm
Depth	160 mm
Built-in depth	165 mm
Inner depth	140 mm
Material plate thickness cabinet	1 mm
Material plate thickness door/cover	1.25 mm

Colour	Grey
RAL-number	7035
Number of openings for flange plates	1
Extension possible	No
Housing material	Steel
Surface protection	Powder coating
With mounting plate	Yes
Suitable for outdoor use	Yes
Suitable for lightning protection	No
Degree of protection (IP)	IP66
Protection class according to IEC 61140	I
degree of impact strength (IK)	IK10
Circuit integrity	Other
