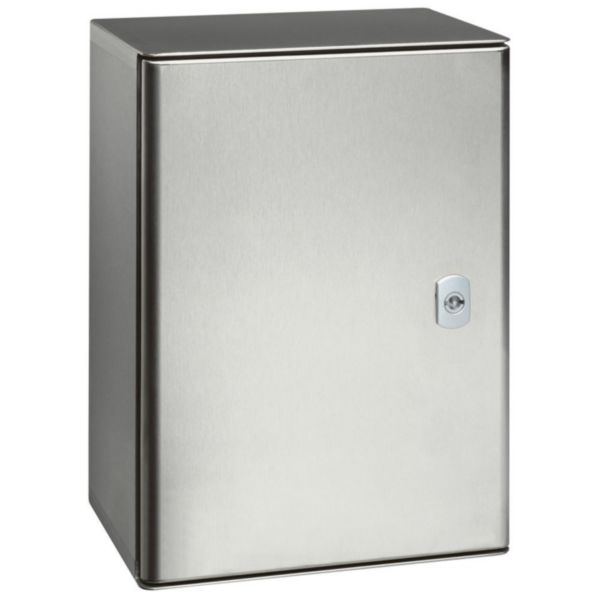

Atlantic stainless steel 304L cabinet 500x400x200mm - IP66 IK10 - 1 door
Atlantic
LEGRAND
Atlantic stainless steel 304L cabinet 500x400x200mm - IP66 IK10 - 1 door
REF. 035202
EAN.
3245060352028
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Mounting method | Surface mounted |
|---|---|
| Type of covering | Door |
| Cover model | Closed |
| Type of door | Single |
| Transparent cover/door | No |
| With lock | Yes |
| Height | 500 mm |
| Width | 400 mm |
| Depth | 200 mm |
| Built-in depth | 205 mm |
| Inner depth | 180 mm |
| Material plate thickness cabinet | 1 mm |
| Material plate thickness door/cover | 1 mm |
|---|---|
| Number of openings for flange plates | 0 |
| Extension possible | No |
| Housing material | Stainless steel |
| Surface protection | Untreated |
| With mounting plate | No |
| Suitable for outdoor use | Yes |
| Suitable for lightning protection | No |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | I |
| degree of impact strength (IK) | IK10 |
| Circuit integrity | Other |
Documentation
5 documents
Technical Guide
Instruction Use
Technical Sheet
Technical Sheet
Technical Guide
1 document
Catalogue Commercial Page
1 document
3D Autocad
4 documents
Agreement
OC / CB-FR701269
(0.39 Mo)
Agreement
TUV GS-R 60175536
(1.67 Mo)
Agreement
VERITAS (BV)-03212/J0 BV
(0.59 Mo)
Agreement
UL listed cULus-20150526-E164087
(0.39 Mo)
