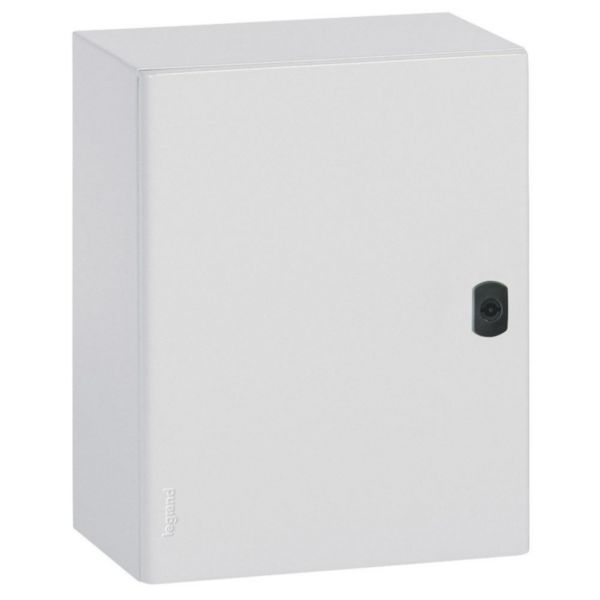

Name: Atlantic metal cabinet - vertical version - 700 x 500 x 200 mm - 1 door
SKU: 036921

Atlantic metal cabinet - vertical version - 700 x 500 x 200 mm - 1 door

LEGRAND

Atlantic metal cabinet - vertical version - 700 x 500 x 200 mm - 1 door

REF. 036921 EAN. 3414970696526

Compare You can only compare 4 products, you must remove 1 to add this one

Atlantic metal cabinets supplied with plain plate - IP 55/IP 66 - IK 10 - Type 4x - Type 12 - IP 66 according to standards IEC EN 60529 for 1 - door cabinets - IP 55 according to standards IEC EN 60529 for 2 - door cabinets - IK 10 according to standards IEC EN 62262 - LCIE 17 07 90 10A - Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas - EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us) - Excellent resistance to corrosion and chemical agents - 80 m thick textured polyester coating. Anti - corrosion treatment for hinges and pins - Reversible door - Fitted with lever - Supplied with double bar lock - Self - centering positioning system for the equipment - Compatible with all Atlantic Accessories Low cable entries RAL 7035 - Optional depth adjustement for cabinets 400 mm depth, with slide rails Cat.No 0 367 45
Metal door cabinets - Supplied with plain plateVertical version - External dimensions Height x Width x Depth : 700 x 500 x 200 mm - Number of doors : 1 - Weight : 20,3 kg

Mounting method	Surface mounted
Type of covering	Door
Cover model	Closed
Type of door	Single
Transparent cover/door	No
With lock	Yes
Height	700 mm
Width	500 mm
Depth	200 mm
Built-in depth	205 mm
Inner depth	180 mm
Material plate thickness cabinet	1 mm
Material plate thickness door/cover	1.5 mm

Colour	Grey
RAL-number	7035
Number of openings for flange plates	1
Extension possible	No
Housing material	Steel
Surface protection	Powder coating
With mounting plate	Yes
Suitable for outdoor use	Yes
Suitable for lightning protection	No
Degree of protection (IP)	IP66
Protection class according to IEC 61140	I
degree of impact strength (IK)	IK10
Circuit integrity	Other

Atlantic metal cabinet - vertical version - 700 x 500 x 200 mm - 1 door
