Arteor™ with Netatmo - Home/Away wireless master switch

Arteor™ with Netatmo LEGRAND

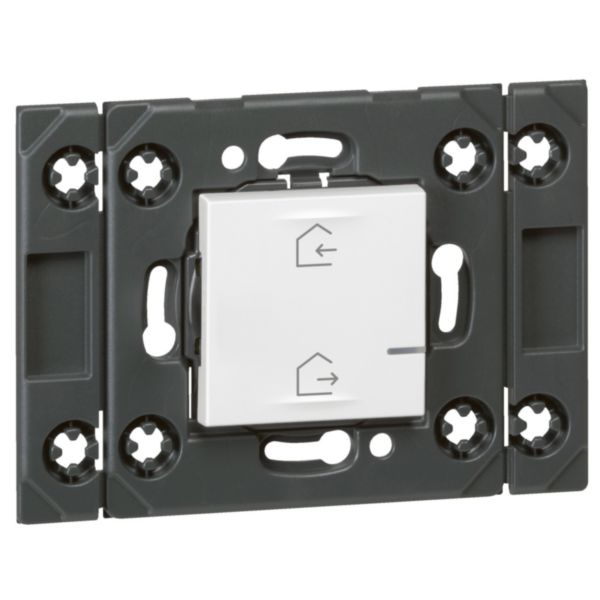

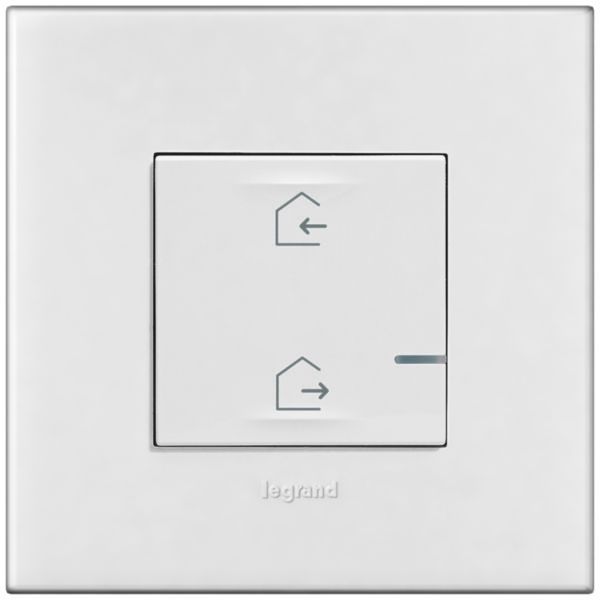

Arteor™ with Netatmo - Home/Away wireless master switch

REF. 574206 EAN. 3414971352865
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Predefined Home/Away scenarios which can be customised from the Home + Control app. Manage them with a single press on your wireless master switch
  • LED indicator with low battery warning
  • Supplied with a replaceable battery with an 8 - year life
  • White
Recommendation / Restriction
  • To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a Arteor with Netatmo connected starter pack, as well as one or more Arteor with Netatmo connected switches, power outlets or lighting micromodules

The product's benefits

Installation
  • Extra-slim, the Home/Away wireless master switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
  • The Home/Away wireless master switch complements the one included in the Arteor with Netatmo connected starter pack. You can therefore place each of these switches at different entrances to your home

Technical characteristics

Radio frequency 2400 MHz
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP20
Keyboard protection cover No
Current supply Battery
Width 116.5 mm
Height 82 mm
Depth 12 mm
Built-in depth 0 mm
degree of impact strength (IK) IK02
Operating / setting temperature 5-45 °C
Storage temperature 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour White
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Lighting management
Application name Home + Control
Programming way Smartphone apps

Documentation

2 documents
Technical Sheet
F02625EN-00.pdf pdf (0.52 Mo)
Instruction Use
LE11043AA.pdf pdf (1.2 Mo)
1 document
Catalogue Commercial Page
ex223001_0611.pdf pdf (0.16 Mo)
