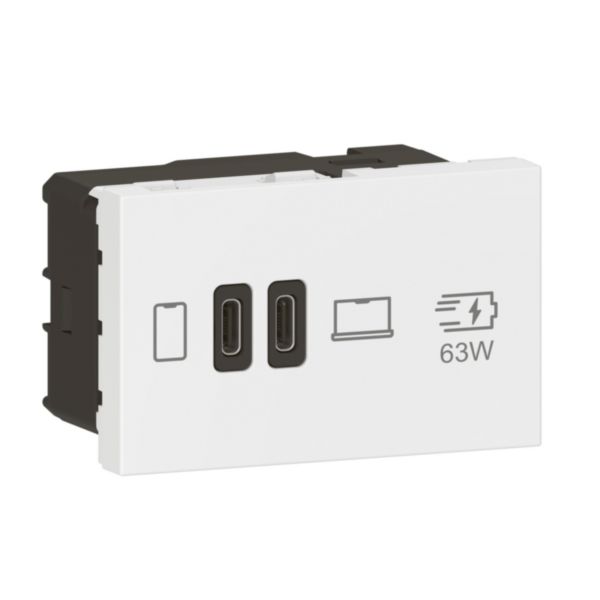

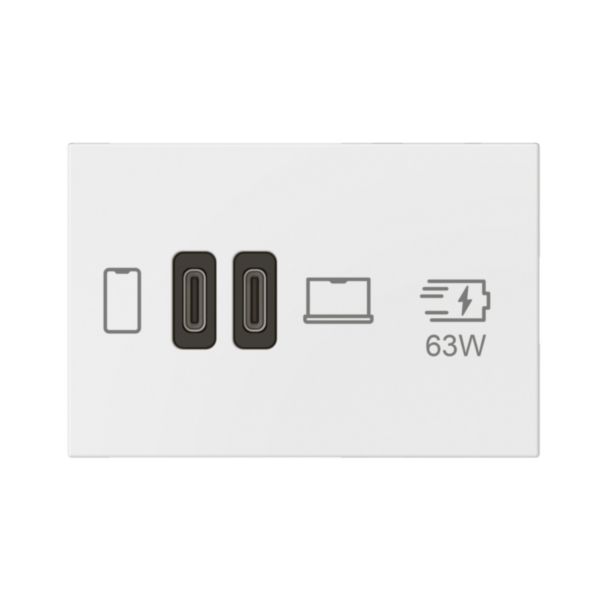

Arteor™ - USB charger 3mod 63W C+C power delivery White

Name: Arteor™ - USB charger 3mod 63W C+C power delivery White
SKU: 575490

Arteor™ LEGRAND

REF. 575490 EAN. 3414972505376

Compare You can only compare 4 products, you must remove 1 to add this one

For installation in floor boxes, one-piece DLP trunking, office blocks, columns and balusters.

Number of modules (module system)	3
Model	Other
Number of ports USB-A	0
Number of ports USB-C	2
Operating voltage (Min-Max)	220-240 V
Frequency (Min-Max)	50-60 Hz
Max. output current	3000 mA
Output voltage (Min-Max)	5-20 V
Power consumption	0.05 W
Connection type	Push-in clamp
Mounting method	Flush-mounted
Colour	White
RAL-number	9003
Device width	67.5 mm
Device height	45 mm
Device depth	42 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40

degree of impact strength (IK)	IK04
Antimicrobial treatment	No
Wireless	No
Built-in depth	33.5 mm
Operating / setting temperature (Min-Max)	5-40 °C
Storage temperature (Min-Max)	-20-70 °C
Voltage type	AC
Power Delivery	Yes
USB Output Power	63
Supply current (Min-Max)	1-1 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²
