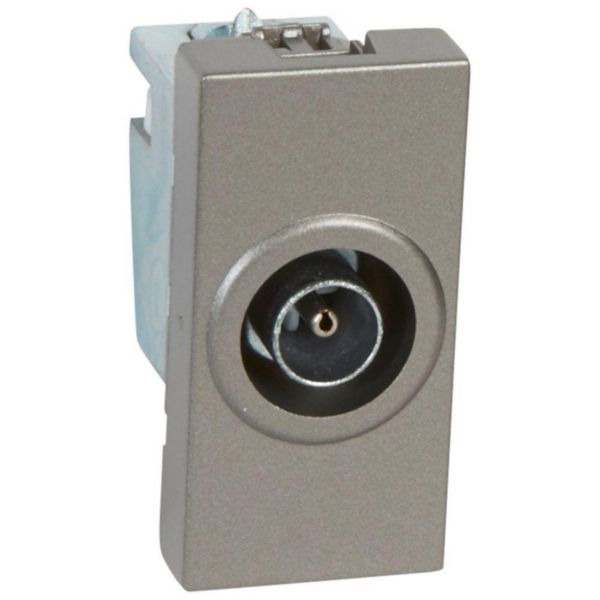

Arteor™ - TV socket - TV single shielded male Ø9.5mm - 0-2400 Hz -2 mod -Magnesium

Name: Arteor™ - TV socket - TV single shielded male Ø9.5mm - 0-2400 Hz -2 mod -Magnesium
SKU: 572671

Arteor™ LEGRAND

REF. 572671 EAN. 3245065726718

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ - televison sockets - Mechanisms supplied with rocker plates, to be equipped with support frames and plates - For Dvbt, Cablecast and satellite installation - UHD TV quality compatible - Classe A shielded star socket LTE ready (4G protected) - Recommended coaxial cable : 17 VATCA - Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch). Visual check of the connection - Meets EN 50083 - 4 and EN 50083 - 2 European directive - TV : male connector (Ø9.5 mm) - 5 - 68 /120 - 862 MHz - R : female connector (Ø9.5 mm) - 87.5 - 108 MHz - SAT : "F" type connector - 950 - 2400MHz
Single TV star sockets - 1 module - Low attenuation 1dBTV 9.5 mm male sockets - Magnesium

Model	End socket
Type of socket outlet	TV
DAB+	No
Mounting method	Module frame
Number of modules (module system)	2
Assembly arrangement	Basic element with central cover plate
Tap loss at 860 MHz	1 dB
Tap loss at 2150 MHz	1.5 dB
Number of outlets	1
Suitable for cable modem	No
Suitable for remote power supply	Yes

Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	45 mm
Device height	45 mm
Device depth	33 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature	5-45 °C
Storage temperature	-25-70 °C

2 documents

Select all

Instruction Use

LE08364AA.pdf pdf (1.51 Mo)

Technical Sheet

F00843EN-02.pdf pdf (0.39 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0578.pdf pdf (0.09 Mo)

Catalogue Commercial Page

ex223001_0877.pdf pdf (0.08 Mo)
