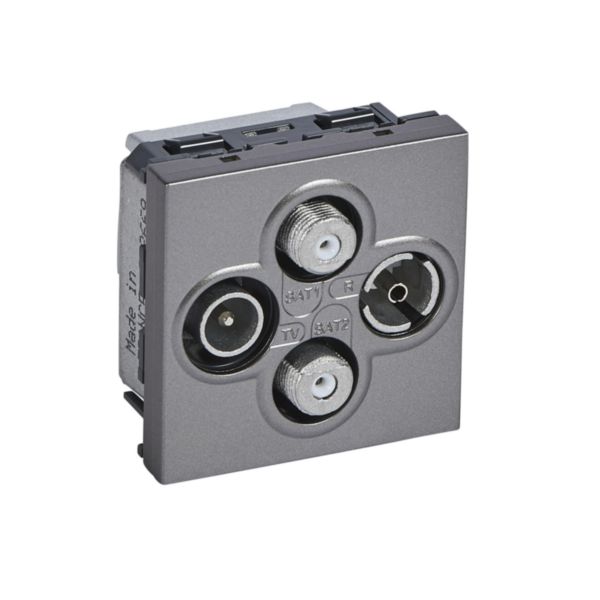

Arteor™ - TV socket - TV-R-SAT-SAT shielded - 0-2400 Hz - 2 modules - Magnesium

Name: Arteor™ - TV socket - TV-R-SAT-SAT shielded - 0-2400 Hz - 2 modules - Magnesium
SKU: 572669

Arteor™ LEGRAND

REF. 572669 EAN. 3414970941015

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ - televison sockets - Mechanisms supplied with rocker plates, to be equipped with support frames and plates - For Dvbt, Cablecast and satellite installation - UHD TV quality compatible - Classe A shielded star socket LTE ready (4G protected) - Recommended coaxial cable : 17 VATCA - Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch). Visual check of the connection - Meets EN 50083 - 4 and EN 50083 - 2 European directive - TV : male connector (Ø9.5 mm) - 5 - 68 /120 - 862 MHz - R : female connector (Ø9.5 mm) - 87.5 - 108 MHz - SAT : "F" type connector - 950 - 2400MHz
Multi TV star sockets - 2 modules TV - R - SAT - SAT sockets - In1 : TV - R - SAT1 / In2 : SAT2 - Low attenuation : 1.5 dB - Magnesium - Can be installed in receptacles for floor sockets

Model	End socket
Type of socket outlet	TV/RD/SAT
DAB+	No
Mounting method	Module frame
Number of modules (module system)	2
Assembly arrangement	Basic element with central cover plate
Tap loss at 860 MHz	1.5 dB
Tap loss at 2150 MHz	2 dB
Number of outlets	4
Suitable for cable modem	No
Suitable for remote power supply	Yes
Colour	Grey
Surface protection	Lacquered

Surface finishing	Matt
Material	Plastic
Material quality	Duroplast
Halogen free	Yes
Antimicrobial treatment	No
degree of impact strength (IK)	IK04
Device width	45 mm
Device height	45 mm
Device depth	40 mm
Min. depth of built-in installation box	27 mm
Operating / setting temperature	5-45 °C
Storage temperature	-25-70 °C
