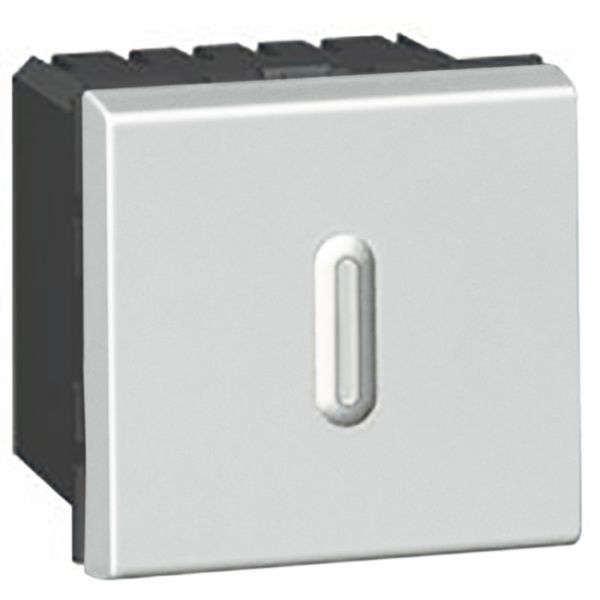

Arteor™ - Time delay switch - with LED - 2 modules - Soft Alu

Name: Arteor™ - Time delay switch - with LED - 2 modules - Soft Alu
SKU: 574137

Arteor™ LEGRAND

REF. 574137 EAN. 3414971850521

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor lighting control, emergency push - buttons - Mechanisms supplied with rocker plates, to be equipped with support frames and plates
Time delay switches - Interference suppression conforming to standard EN 55022 - For timer control of a circuit with the following loads : - 1000 W incandescent and halogen 230 V~ - 2300 W resistive (heating ) - 400 VA fluorescent and ELV halogen - Adjustable from 25 s to 15 min - It is possible to install a number of timer switches In =arallel on the same circuit - With integrated LED - 2 - wire installation In =ox min. depth 40 mm - 2 modules - Soft Alu

Assembly arrangement	Basic element with central cover plate
Number of modules (module system)	2
Model	Electronic
Mounting method	Flush-mounted
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Matt
Colour	Aluminium
Transparent	No
Suitable for degree of protection (IP)	IP41
Shortest switching interval	0.4 min
Random generator	No
Nominal voltage	240 V
Frequency	47-63 Hz

Astro program	No
Substation input	No
Rated current	8 A
With brightness sensor connection	No
Max. power	1840 W
Built-in depth	32.7 mm
Device width	45 mm
Device height	45 mm
degree of impact strength (IK)	IK04
Operating / setting temperature	-5-50 °C
Storage temperature	-10-60 °C
Voltage type	AC
Halogen free	Yes
Connection type	Screwed terminal
Terminals capacity	2.5-2.5 mm²
