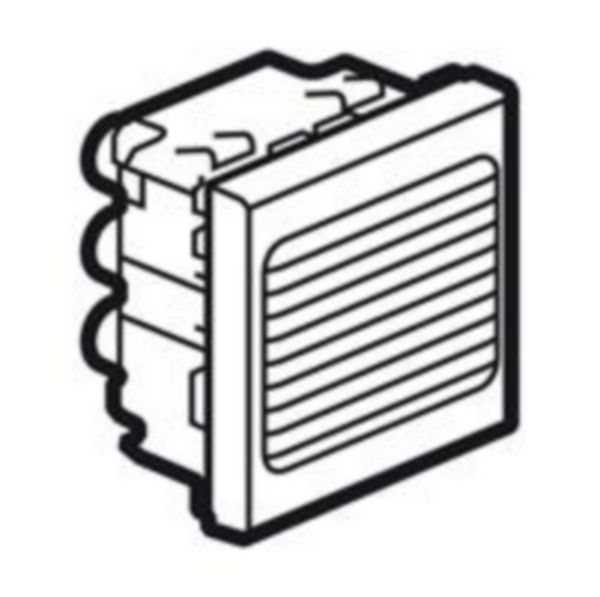

Arteor™ - Single pole latching relay - 10 A - 250 V~ - 50/60 Hz - 2 modules - White

Name: Arteor™ - Single pole latching relay - 10 A - 250 V~ - 50/60 Hz - 2 modules - White
SKU: 572227

Arteor™ LEGRAND

REF. 572227 EAN. 3245065722277

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ - lighting control, emergency push - buttons - Mechanisms supplied with rocker plates, to be equipped with support frames and plates
Single pole latching relays 10 A - 250 V~ - Used to bring functions with low breaking capacity close to the application - Resistive : 3000 W - Incandescent : 1800 W - LV halogen : 1800 W - Fluorescent : 400 VA - Motors (roller blind type) : 530 W - 2 modules - White

Type of electric connection	Screw connection
Complete with socket	Yes
With detachable clamps	No
With LED indication	No
Rated control supply voltage AC 50 Hz (Min-Max)	230-250 V
Rated control supply voltage AC 60 Hz (Min-Max)	230-250 V
Voltage type for actuating	AC
Drive, polarization	Polarity free
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1
With forced-guided contacts	No

Degree of protection (IP)	IP20
Width	45 mm
Height	45 mm
Depth	32 mm
Built-in depth	32 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	5-45 °C
Colour	White
RAL-number	9003
Halogen free	Yes
