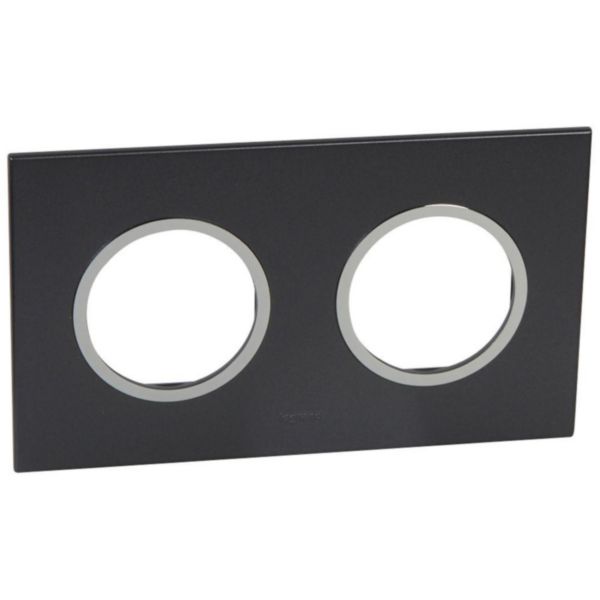

Arteor™ - Plate - French/German std - round - 2 x 2 modules - Graphite

Name: Arteor™ - Plate - French/German std - round - 2 x 2 modules - Graphite
SKU: 575512

Arteor™ LEGRAND

REF. 575512 EAN. 3245065755121

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ German and French standard plates - 60 mm Fixing centres
For 2 x 2 module mechanism - To be associated with surface mounting box Cat. No 5 723 92 or flush-mounting box Cat.No 0 800 42 and 2 support frames Cat. Nos 5 760 21 Round version - Neutral - Graphite
Neutral
Graphite

Number of units	2
Mounting direction	Horizontal
Number of units horizontal	2
Number of units vertical	1
Number of modules horizontal (module system)	4
Number of modules vertical (module system)	1
With mounting grid	No
Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Label space/information surface	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Lacquered
Surface finishing	Matt

Colour	Black
Transparent	No
With hinged lid	No
Degree of protection (IP)	IP40
degree of impact strength (IK)	IK04
Type of fastening	Engage (snap)
Width	157 mm
Height	92 mm
Depth	7.7 mm
Inner diameter	45.4 mm
Built-in height	0 mm
Diameter bore hole (opening)	45.4 mm
Operating / setting temperature	-5-50 °C
Storage temperature	-10-70 °C
Latin wood species	Not applicable
Certification of wood (list)	Not applicable
Wood Climate area	Not applicable
