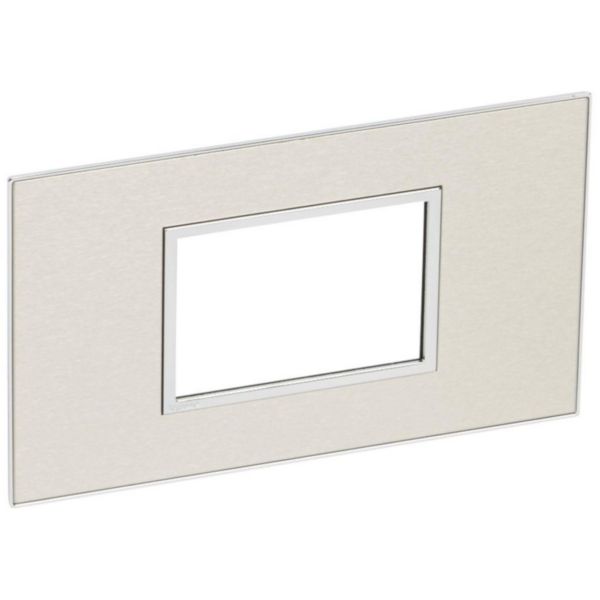

Arteor™ - Plate - British std - square - 3 modules - stainless style

Name: Arteor™ - Plate - British std - square - 3 modules - stainless style
SKU: 575076

Arteor™ LEGRAND

REF. 575076 EAN. 3245065750768

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ British standard plates - 60,3 mm Fixing centres
For 3 module mechanism and shaver socket - To be associated with 2 gang flush-mounting box and support frame Cat. No 5 760 02 Square version - Brushed metal - Stainless Steel
Brushed metal
Stainless Steel

Number of units	1
Mounting direction	Horizontal and vertical
Number of units horizontal	1
Number of units vertical	1
Number of modules horizontal (module system)	3
Number of modules vertical (module system)	1
With mounting grid	No
Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Label space/information surface	No
Material	Metal
Material quality	Stainless steel
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Brushed

Surface finishing	Matt
Colour	Stainless steel
Transparent	No
With hinged lid	No
Degree of protection (IP)	IP40
degree of impact strength (IK)	IK04
Type of fastening	Engage (snap)
Width	157 mm
Height	92 mm
Depth	8 mm
Built-in height	0 mm
Operating / setting temperature	-5-50 °C
Storage temperature	-10-70 °C
Latin wood species	Not applicable
Certification of wood (list)	Not applicable
Wood Climate area	Not applicable
