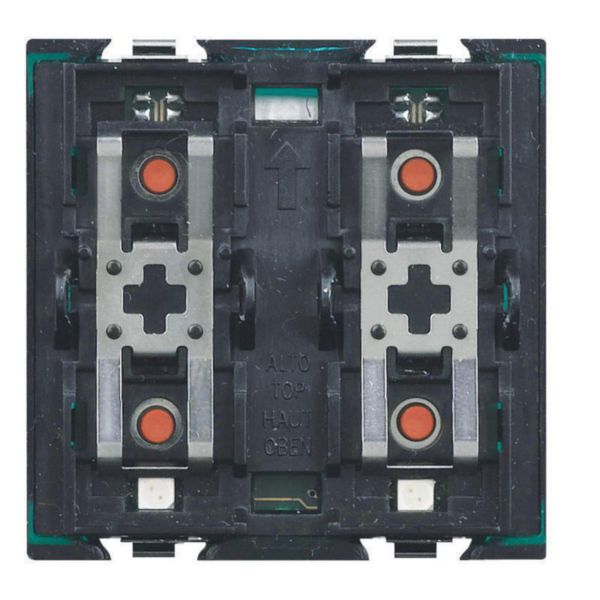

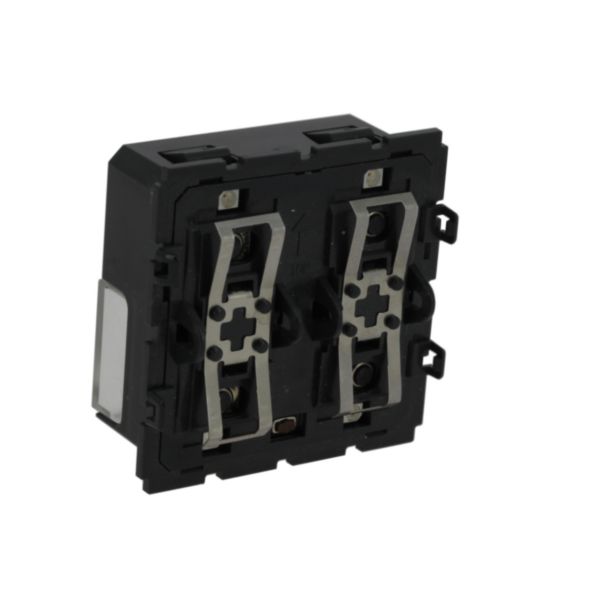

Arteor ON/OFF push-button light control used to control 1 controller.


Arteor ON/OFF push-button light control used to control 1 controller.

REF. 067553 EAN. 3245060675530
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequent) No
Bus system radio frequent No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Radio frequent bidirectional No
Mounting method Flush-mounted
With anti-theft/dismantling protection No
With bus connection Yes
Number of actuation points 4
Number of buttons 4
With LED indication No
With label area No
With display No
Material Plastic
Material quality Thermoplastic
Surface protection Untreated
Colour Other
RAL-number (similar) 7016
Transparent No
With room temperature controller No
With IR sensor No
Degree of protection (IP) IP20
Min. depth of built-in installation box 55 mm
Width 45 mm
Height 45 mm
Depth 24 mm
Degree of impact strength (IK) Other
Operating / setting temperature 5-35 °C
Storage temperature -10-70 °C
Frequency 0-0 Hz
Standby consumption 8.5 mA
Terminal marking indication No
Halogen free No
Antimicrobial treatment No
Terminals capacity 0.34-2.5 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Addressable Yes
Connected object No
Operating method SCS
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Product use function Control & command systems
