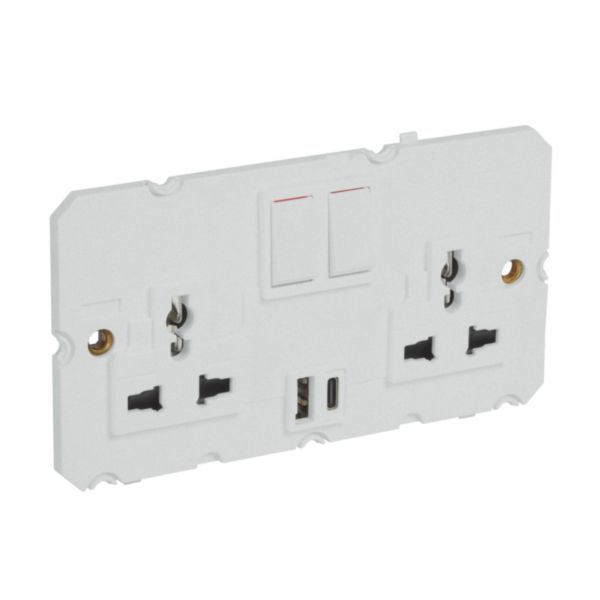

Arteor™ - Multistandard 2x2P+E switched 2 gang socket outlet 16 A 250 V~/ 15 A - 127 V~ with USB charger - Soft Alu

Name: Arteor™ - Multistandard 2x2P+E switched 2 gang socket outlet 16 A 250 V~/ 15 A - 127 V~ with USB charger - Soft Alu
SKU: 570084

Arteor™ LEGRAND

REF. 570084 EAN. 3414971851771

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor multistandard socket outlets with USB charger - Mechanisms supplied with rocker plates, to be equipped with special plates - Support frame not needed
Multistandard switched socket outlets 16 A - 250 V~/ 15 A - 127 V~ with USB charger - Mechanism supplied with rocker plate, to be equipped with special plate - Support frame not needed - Shuttered for child safety - USB charger conform to IEC 60950 - 12 x 2P+E - 2 gang USB Type - A + Type - C 3 A - 5 V= - 15 W - Consumption In = assive mode = 0,08 W - Soft Alu

Model	Multi-standard socket
Protective contact	Other
Number of active contacts (round)	2
Number of active contacts (flat)	0
Assembly arrangement	Basic element with central cover plate
With complemantary luminous signal	No
Number of ports USB-A	1
Number of ports USB-C	1
Number of socket outlets	2
Number of modules (module system)	1
Number of socket outlets switchable	2
Number of phases	1
Imprint/indication	Other
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	Yes
Label space/information surface	No
Colour	Aluminium
Metallic colour	No
Transparent	No
Lockable	Yes
Eject-mechanism	Yes
Insulated mounting	Yes
With function lighting	No
With orientation lighting	No
Overvoltage protection	No
Fault current protection	No
With miniature fuse	No
Special power supply	Safety power supply (green)
Mounting method	Other
Type of fastening	Mounting with screw
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes

Surface protection	Untreated
Surface finishing	Matt
Antimicrobial treatment	No
With on/off switch	Yes
Colour of switch operator	Aluminium
Rotated central insert	No
Nominal current	16 A
Nominal voltage	250 V
Frequency (Min-Max)	50-60 Hz
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK02
Device width	146 mm
Device height	86 mm
Device depth	30 mm
Compatible with Apple HomeKit	No
Compatible with Amazon Alexa	No
Compatible with Google Assistant	No
IFTTT support available	No
With Wi-Fi signal repeater	No
With built-in bluetooth speaker	No
For heavy conditions according to VDE	No
Built-in depth	19.6 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	15 W
Prewired	No
Terminals capacity (Min-Max)	20-22 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-6 mm²
Cable support	Screw cable clamp
Connected object	No
