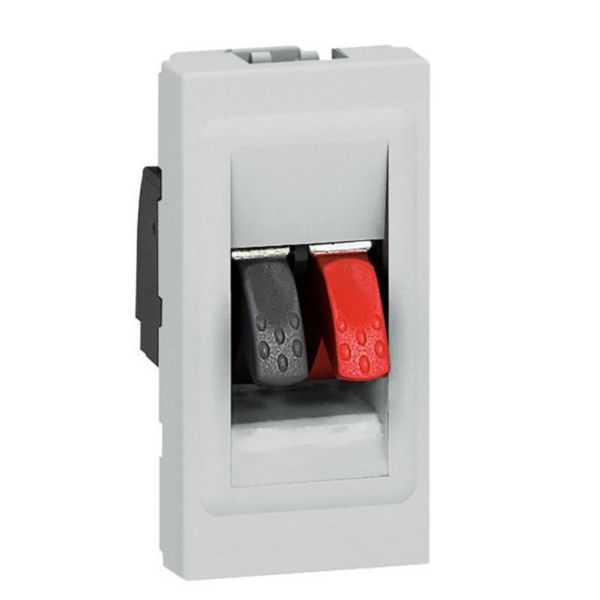

Arteor™ - Loudspeaker socket - 4 mm² terminal - 1 module - Soft Alu

Name: Arteor™ - Loudspeaker socket - 4 mm² terminal - 1 module - Soft Alu
SKU: 572696

Arteor™ LEGRAND

REF. 572696 EAN. 3414971917620

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor audio and video sockets - Mechanisms supplied with rocker plates, to be equipped with support frames and plates
Loudspeaker sockets - 4 mm² terminals 1 module - Soft Alu

Assembly arrangement	Modular device for domestic switching devices
Utilization	Loudspeaker connection
Support ring	No
With dust cover	No
With hinged lid	No
Outlet direction	Straight
Imprintable label	Without indication field
With imprint	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Glossy

Colour	Aluminium
Transparent	No
Type of fastening	Engage (snap)
Number of modules (module system)	1
With strain relief	No
Luster terminal	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	22.5 mm
Device height	45 mm
Device depth	36 mm
Built-in depth	34 mm
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-70 °C

2 documents

Select all

Catalogue Commercial Page

ex223001_0584.pdf pdf (0.1 Mo)

Catalogue Commercial Page

ex223001_1007.pdf pdf (0.11 Mo)
