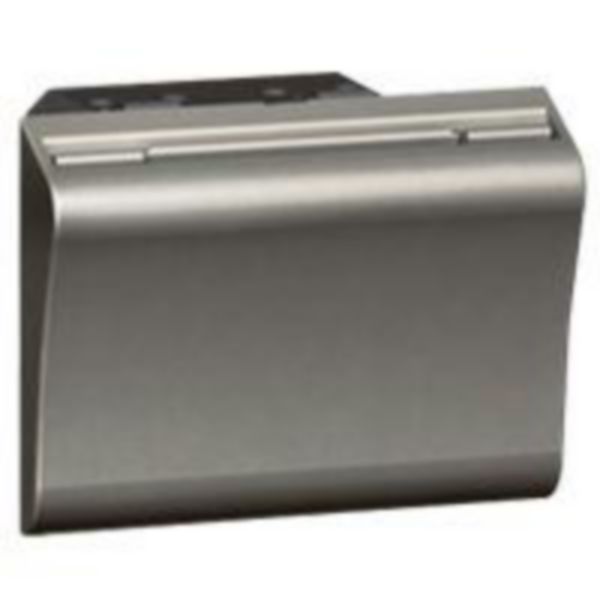

Arteor™ - Key fob switch - 230 V - 2 modules - Magnesium

Name: Arteor™ - Key fob switch - 230 V - 2 modules - Magnesium
SKU: 572730

Arteor™ LEGRAND

REF. 572730 EAN. 3245065727302

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ hotel equipment - wiring devices - Mechanisms supplied with rocker plates, to be equipped with support frames and plates
Mechanical key card switches - For energizing a circuit by inserting a key fob Cat.No 5 722 59 or a smart card (access card for a hotel room) - Example of use : hotel room power supply only when guest is present - Time - delay of approx. 30 sec. after card removal - To be equipped with single pole latching relay Cat.Nos 5 722 27 or 5 727 27 - 2 modules Key card switches 230 V - Magnesium

Wiring system	Switch 1-pole
Method of operation	Hotel card
Assembly arrangement	Basic element with central cover plate
Push button switch	No
Number of rockers	0
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Lacquered
Surface finishing	Matt
Colour	Grey
Colour of switch operator	Grey
Label space/information surface	No
Lighting	Yes
Function lighting	Orientation
Type of lighting	LED not exchangeable
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Nominal voltage	230 V
Rated current	2 A
Switching current for fluorescent lamps	2 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	61 mm
Device height	47 mm
Device depth	55.5 mm
Built-in depth	33.5 mm
Min. depth of built-in installation box	30 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature (Min-Max)	-5-50 °C
Storage temperature (Min-Max)	-10-55 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Cable section (Min-Max)	2.5-2.5 mm²
