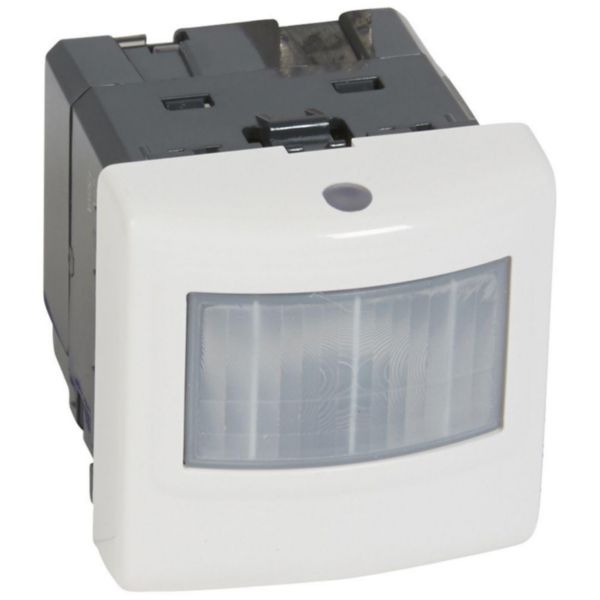

Arteor Green Switch white passive infrared motion sensor (PIR)

My Home LEGRAND

Arteor Green Switch white passive infrared motion sensor (PIR)

REF. 574046 EAN. 3245065740462
Arteor Green Switch white PIR motion sensor, flush mounted and Bus SCS networkable, ensures precise motion detection. Adjustable delay time 5s to 59min and brightness threshold 20lux to 1275lux optimize energy savings.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Arteor Green Switch white PIR motion sensor, flush mounted and Bus SCS networkable, ensures precise motion detection. Adjustable delay time 5s to 59min and brightness threshold 20lux to 1275lux optimize energy savings.

Product characteristics
  • Flush mounted
  • Passive infrared
  • Arteor white
  • Bus SCS
  • delay time 5s-59min and brightness threshold 20-1275lux

The product's benefits

Installation
  • In standard boxes like wiring devices range
Usage
  • Passive infrared suitable for traffic areas

Technical characteristics

With movement sensor Yes
Mounting method Flush-mounted
Constant light control Yes
HVAC-control No
Networkable Yes
Suitable for wireless transmission No
Creep-under protection Yes
Mounting height 1.2 m
Max. reach sideways 3 m
Max. reach frontally 8 m
Diameter reach on floor 6 m
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Animal zone No
Staircase light controller Yes
Combination movement sensor/push button switch No
With orientation lighting No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Suitable for degree of protection (IP) IP41
Operation mode switch No
Min. switch-on time 30 s
Max. duty cycle 256 min
Detection angle horizontal (Min-Max) 0-180 °
Colour White
RAL-number (similar) 9003
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No

Product environmental data

Product carbon footprint
Estimation of the Global Warming Potential (kgCO₂eq) emitted during the Manufacturing phase of the product life cycle according to sector methodology
1.180
Carbon footprint Manufacturing phase (A1-A3) (kg CO2 eq.)

Documentation

2 documents
Technical Sheet
S000077071EN-2.pdf pdf (0.38 Mo)
Technical Sheet
S000077071FR-2.pdf pdf (0.39 Mo)
3 documents
Product Environmental Profile (PEP)
LGRP-00889-V01.01-EN.pdf pdf (0.56 Mo)
RoHS DIRECTIVE
REACH DECLARATION
2 documents
Catalogue Commercial Page
ex223001_0647.pdf pdf (0.08 Mo)
Brochure
1 document
2D Autocad
Autocad Library zip (0.85 Mo)
