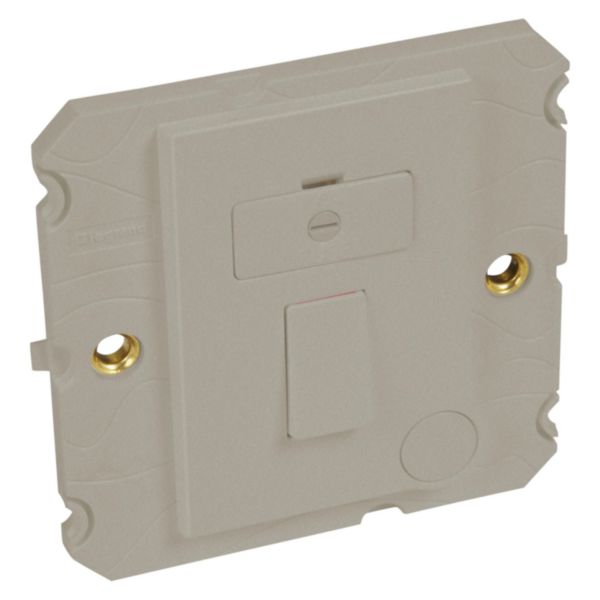

Arteor™ - Fused connection unit - BS 1363:4 - 13 A - switched - Champagne

Arteor™ LEGRAND

Arteor™ - Fused connection unit - BS 1363:4 - 13 A - switched - Champagne

REF. 572675 EAN. 3414971847323
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Arteor British standard socket outlets - Mechanisms supplied with rocker plates , to be equipped with special plates - Support frame not needed
  • Fused connection units - Double pole fused 13 A (fuse supplied) - Flex outlet knockout and cord grip - Captive fuse carrier (padlockable) - Captive terminal screws - Conform to BS 1363 : part 4 - Use special plates Switched - Champagne

Technical characteristics

Connection type Screw connection
Mounting method Front mounting
Type of current AC
Rated current 13 A
Rated voltage 230 V
Dimensions glass fuse 5x25 mm
Width 83.5 mm
Height 78.5 mm
Depth 31 mm
Built-in depth 20 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature -5-50 °C
Storage temperature -10-70 °C
Voltage type AC
Colour Other
Halogen free Yes
Antimicrobial treatment No
Cable section 4-4 mm²

Documentation

1 document
Catalogue Commercial Page
ex223001_0571.pdf pdf (0.1 Mo)
