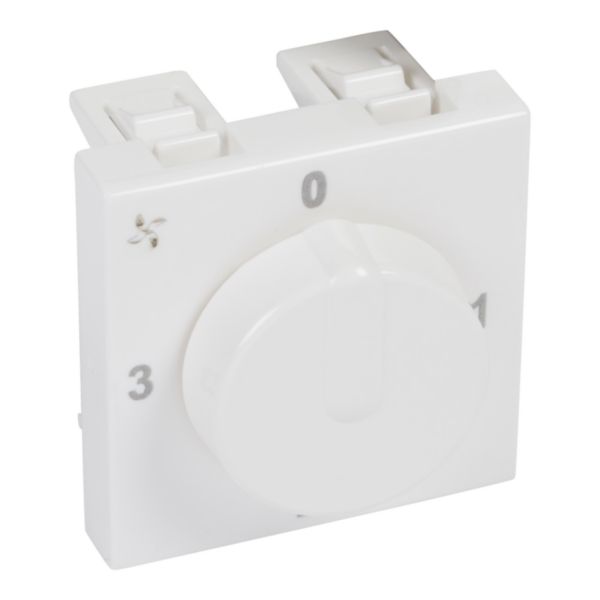

Arteor™ - Fan controller - AC speed control - 4 positions - 2 modules - White

Name: Arteor™ - Fan controller - AC speed control - 4 positions - 2 modules - White
SKU: 572217

Arteor™ LEGRAND

REF. 572217 EAN. 3245065722178

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ - ventilation, heating, roller blinds control, RCBO and MCB - Mechanisms supplied with rocker plates , to be equipped with support frames and plates
Fan controllers - 2 modules AC speed control - 4 positions - White

Assembly arrangement	Other
Method of operation	Turn button
Wiring system	Circuit 0 - 1 - 2 - 3
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003
Transparent	No
Suitable for degree of protection (IP)	IP20

Rated current	10 A
Nominal voltage	250 V
Type of fastening	Other
Width	45 mm
Height	45 mm
Depth	34 mm
Built-in depth	22 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Connection type	Screwed terminal
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
