Arteor™ Advance with Netatmo Smart wireless batteryless control switch Home / Away - Matt Black

Arteor™ Advance with Netatmo Legrand

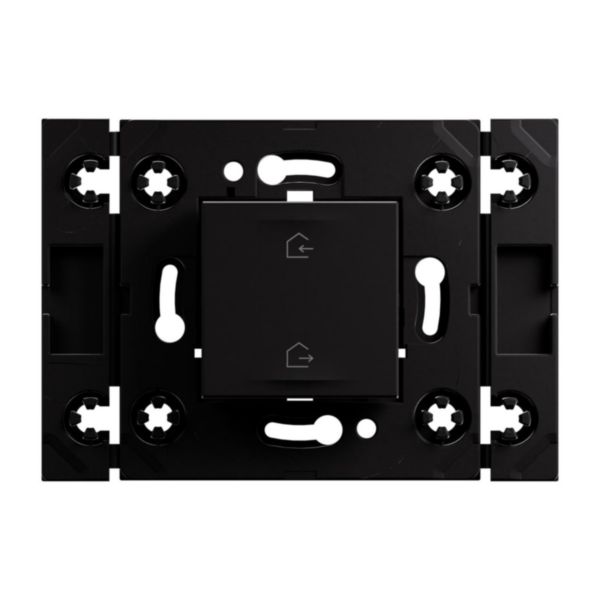

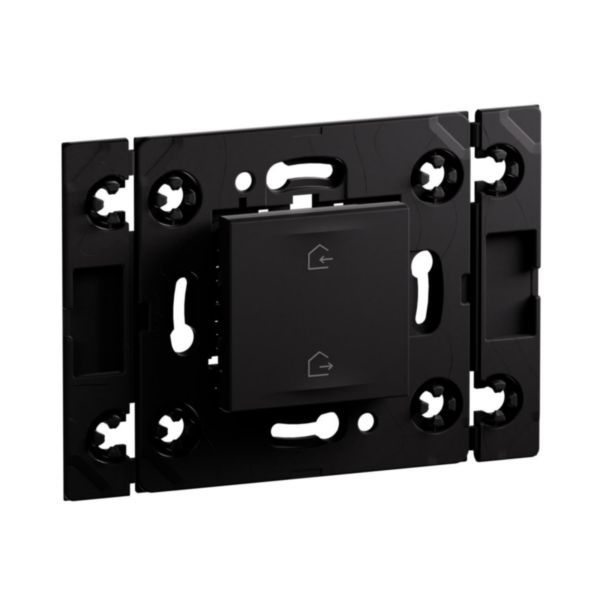

Arteor™ Advance with Netatmo Smart wireless batteryless control switch Home / Away - Matt Black

REF. AC5707MB1 EAN. 3414972700924

The general wireless control allows you to add an additional wireless control.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

The general wireless control allows you to add an additional wireless control.

Product characteristics
  • Predefined start/finish scenarios that can be customised using the Home + Control App . Use the Home + Control App to choose the lighting, roller shutters or electrical appliances you want to control via the Departure and Arrival scenarios, and manage them with a single press on your general wireless, battery-free control.
  • Stand-alone product, works without batteries. No maintenance required
Recommendation / Restriction
  • To add your general wireless control without batteries to your connected installation, you must first purchase and install an Arteor Advance with Netatmo connected starter pack, as well as one or more Celiane with Netatmo connected switches, sockets or lighting micro-modules.

The product's benefits

Installation
  • Extra-flat, the battery-free wireless control for roller shutters can be fixed to a wall using the adhesive tape supplied. It can therefore be repositioned. It can also be screwed onto a flush-mounted box.
Usage
  • The wireless, battery-free general Start/Income control complements the one included in the Arteor Advance with Netatmo connected starter pack, allowing you to place each of these controls at different entrances to your home.
Avantages
  • No need to go round the house to turn everything off. By simply pressing the "Leave Home" button on the master control or app, you can turn off all the lights simultaneously, switch off selected appliances and close all the roller shutters when you leave the house.
  • Once installed on the wall, the battery-free, wireless home/away control has the same look and the same thickness as all the Celiane with Netatmo switches.
  • Quickly and easily combine products by tapping them together (TAP TAP).

Technical characteristics

Radio frequency 2400 MHz
Rolling code system No
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP20
Keyboard protection cover No
Current supply Other
Width 116.6 mm
Height 81.8 mm
Depth 12.2 mm
Built-in depth 0 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour Black
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Energy and lighting management
Application name Home + Control
Programming way Smartphone apps

Documentation

2 documents
Technical Sheet
S000113314EN-02.pdf pdf (1.8 Mo)
Instruction Use
LE15309AA_A3.pdf pdf (4.69 Mo)
