Arteor™ Advance with Netatmo Smart wireless batteryless 1 gang switch 2-way On / Off - Matt White

Arteor™ Advance with Netatmo Legrand

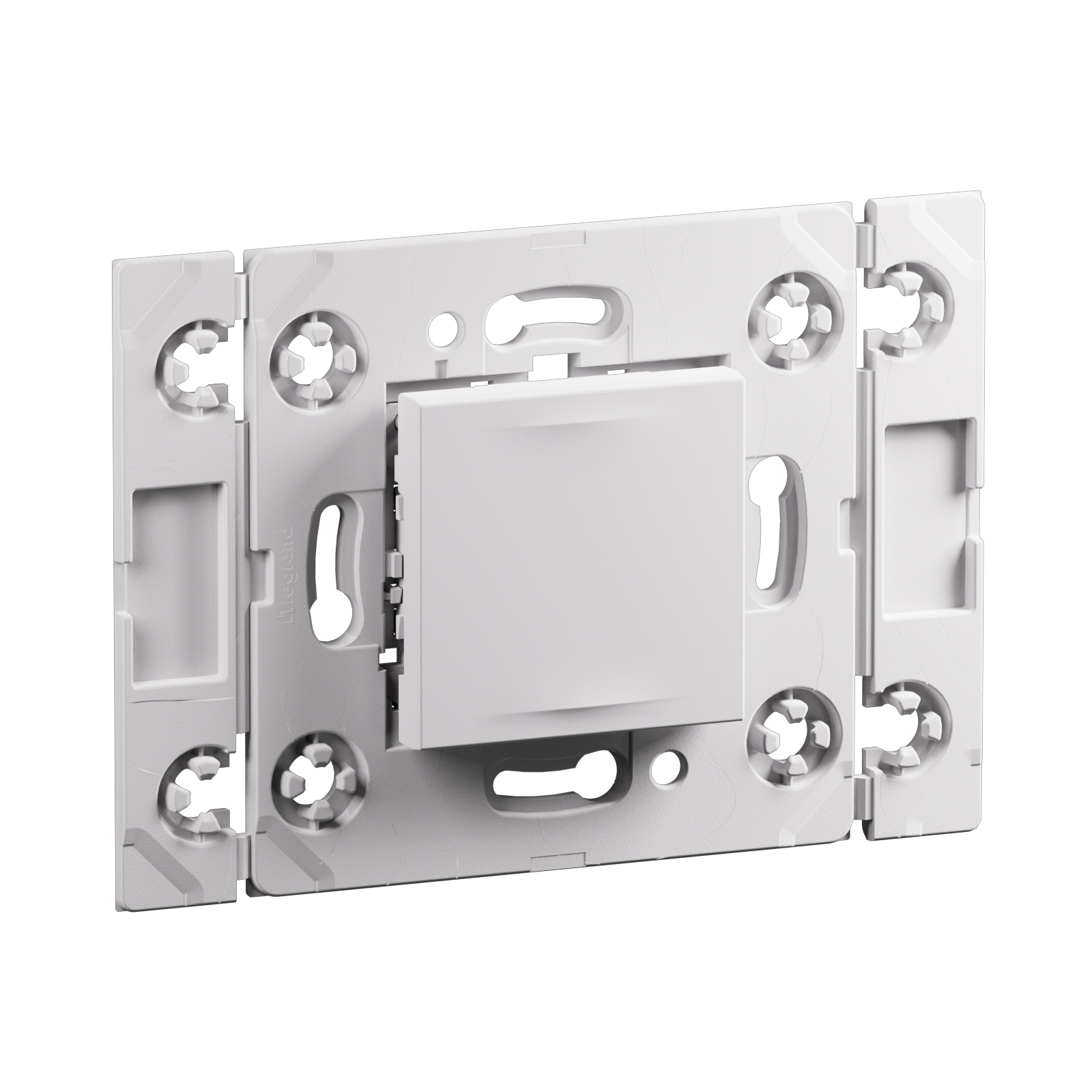

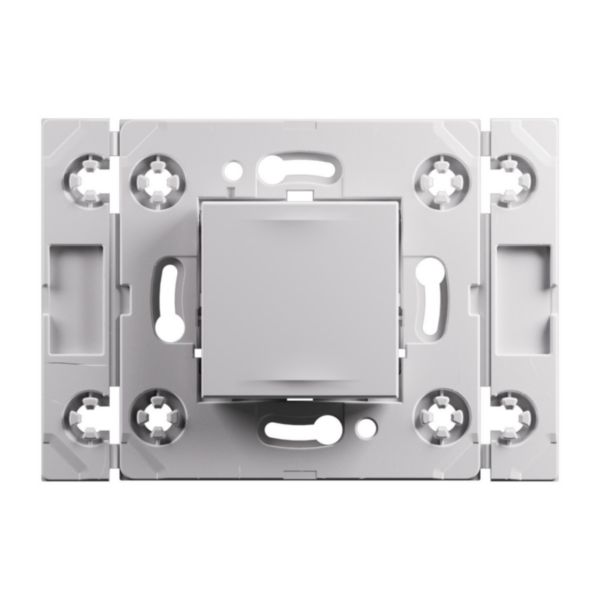

Arteor™ Advance with Netatmo Smart wireless batteryless 1 gang switch 2-way On / Off - Matt White

REF. AC5206MW1 EAN. 3414972700603

Wireless, battery-free control of lighting and sockets means you can add an extra control point without having to run wires through the walls, to control your lighting (particularly back and forth) or electrical appliances.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Wireless, battery-free control of lighting and sockets means you can add an extra control point without having to run wires through the walls, to control your lighting (particularly back and forth) or electrical appliances.

Product characteristics
  • Quick and easy association with wired products (connected switch with dimmer option, connected socket, connected micromodule, or connected cable outlet)
  • Stand-alone product, works without batteries. No maintenance required
Recommendation / Restriction
  • To add battery-free wireless control of your lighting and sockets to your connected installation, you first need to purchase and install an Arteor Advance with Netatmo connected starter pack, as well as one or more Arteor with Netatmo connected switches, sockets or lighting micro-modules.

The product's benefits

Installation
  • Extra-flat, the battery-free wireless control for lights and sockets can be fixed to a wall using the adhesive tape supplied. It can therefore be repositioned. It can also be screwed onto a flush-mounted box.
Usage
  • Combine as many dimmer switches, lighting micro-modules and sockets as you like and control them all with a single press on the battery-free wireless controller
Avantages
  • Combined with the connected starter pack, Arteor Advance with Netatmo products can be controlled manually, remotely via your smartphone or by voice.
  • Once installed on the wall, the wireless, battery-free connected control has the same look and the same thickness as all the Arteor with Netatmo switches.
  • Quickly and easily combine products by tapping them together (TAP TAP).

Technical characteristics

Radio frequency 2400 MHz
Rolling code system No
Code length (Bit) 128
Range 185 m
Number of commands 1
With manual radio transmitter Yes
Flush-mounted radio transmitter No
Surface mounted radio transmitter Yes
With radio coding device Yes
Degree of protection (IP) IP20
Keyboard protection cover No
Current supply Other
Width 116.6 mm
Height 82 mm
Depth 12 mm
Built-in depth 0 mm
degree of impact strength (IK) IK02
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour White
RAL-number 9003
Halogen free Yes
Antimicrobial treatment No
Mounting method Surface mounted
Contains Batteries and/or Accumulator No
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Element Composition (Pack1) Not applicable
Connected object Yes
Operating method Zigbee
Application store for download App Store , Google Play Store
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant , Amazon Alexa , Apple Siri
Product use function Lighting management
Application name Home + Control
Programming way Smartphone apps
