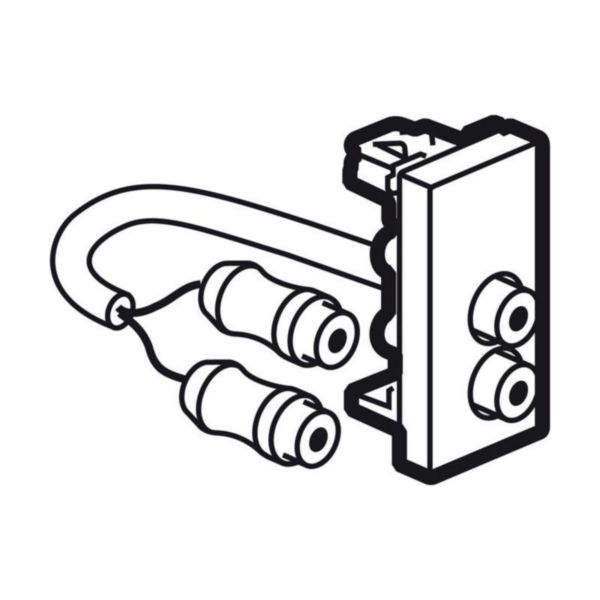

Arteor™ - 2 x RCA socket - preterminated - 1 module - White

Name: Arteor™ - 2 x RCA socket - preterminated - 1 module - White
SKU: 572092

LEGRAND

REF. 572092 EAN. 3245065720921

Compare You can only compare 4 products, you must remove 1 to add this one

Audio/video system - audio/video sockets
2 female RCA sockets - Provide the stereo audio link for any peripheral device such as a DVD player, camera, video recorder, etc - 1 modulePreterminated - Equipped with a 15 cm cord and 2 female connectors - Arteor - White

Assembly arrangement	Basic element with central cover plate
Utilization	RCA
Support ring	No
With dust cover	No
With hinged lid	No
Outlet direction	Straight
Contact type	Female
Imprintable label	Without indication field
With imprint	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003

Transparent	No
Type of fastening	Engage (snap)
Number of modules (module system)	1
Suitable for number of connectors	2
With strain relief	No
Shielded buses	No
Shielded housing	No
Luster terminal	No
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04
Device width	45 mm
Device height	45 mm
Min. depth of built-in installation box	50 mm
Built-in depth	19.7 mm
Operating / setting temperature	-5-50 °C
Storage temperature	-10-70 °C
