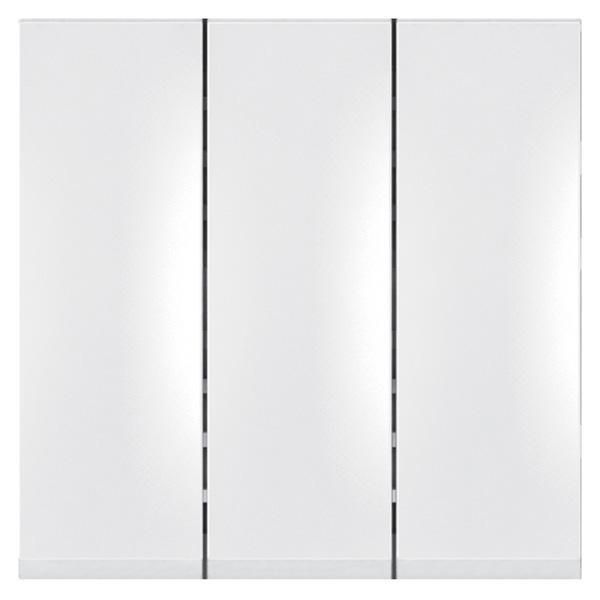

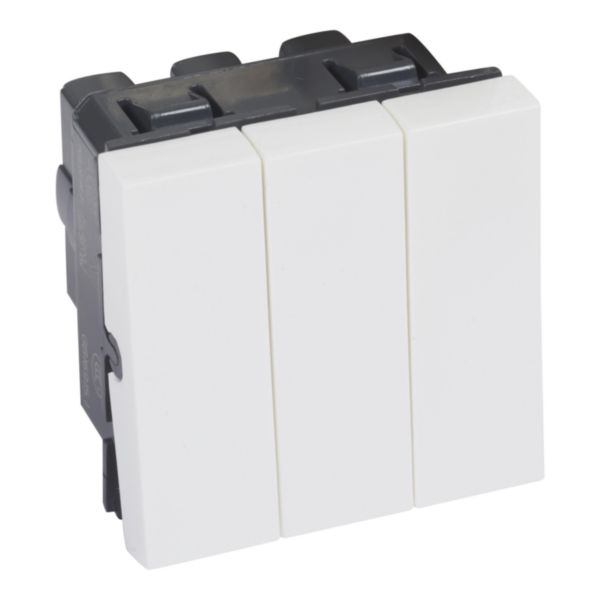

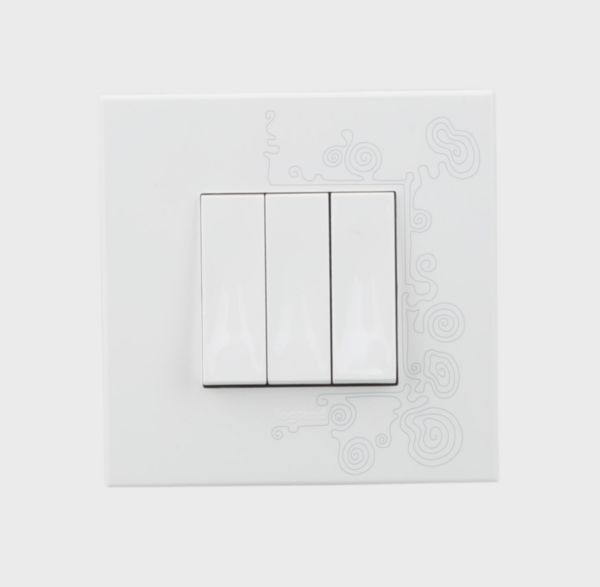

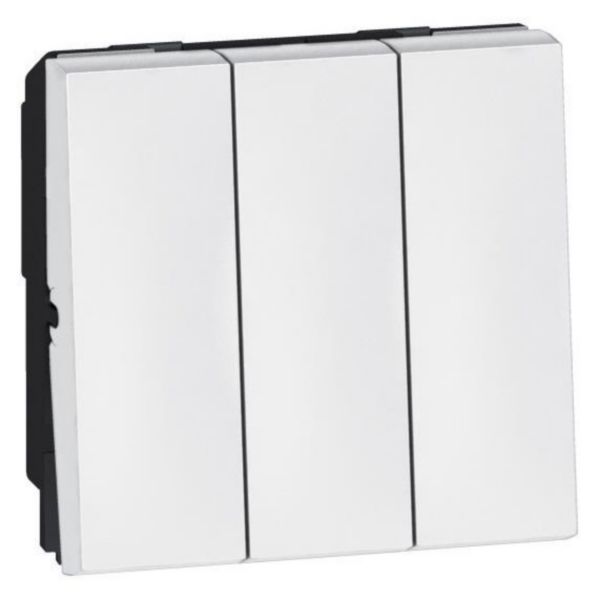

Arteor™ - 2 x 2-way + 1-way switch - 20 AX - 250 V~ - 3-gang - 2 modules - White

Name: Arteor™ - 2 x 2-way + 1-way switch - 20 AX - 250 V~ - 3-gang - 2 modules - White
SKU: 572044

Arteor™ LEGRAND

REF. 572044 EAN. 3245065720440

Compare You can only compare 4 products, you must remove 1 to add this one

Arteor™ mechanical switches - square version - Mechanisms supplied with rocker plates, to be equipped with support frames and plates
Switches 20 AX - 250 V~2 x 2 - way switch+ 1 - way switch - 3 gang - White - 2 modules

Equipped with 2	Two-way switch
Number of socket outlets total	0
Number of socket outlets switchable	0
Method of operation	Rocker/button
Mounting direction	Horizontal
Type of fastening	Other
With lighting	No
Mounting method	Flush-mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003

Transparent	No
Suitable for degree of protection (IP)	IP40
Nominal voltage	250 V
Rated current	20 A
Number of contacts as change-over contact	2
Device width	45 mm
Device height	45 mm
Device depth	43 mm
Built-in depth	28.5 mm
degree of impact strength (IK)	IK04
Operating / setting temperature	-5-50 °C
Storage temperature	-10-70 °C
Connection type	Screwed terminal
Terminals capacity	4-4 mm²

2 documents

Select all

Catalogue Commercial Page

ex223001_0558.pdf pdf (0.11 Mo)

Brochure

BR LEG3971 Get in touch with Arteor Brochure.pdf pdf (17.84 Mo)

1 document

Select all

Agreement

OC / CB-FR_705038/M1 (2.34 Mo)
