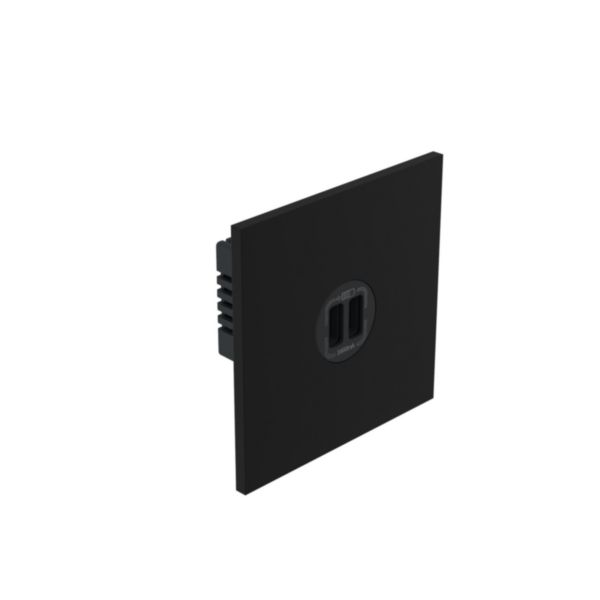

Art d'Arnould - A+A USB charger 3A 15W- Epure matt black

Name: Art d'Arnould - A+A USB charger 3A 15W- Epure matt black
SKU: AR-68428

Art d'Arnould LEGRAND

REF. AR-68428 EAN. 3233625160850

USB A+A 15W charger allowing quick charge (Smartphone tablet Powerbank)

Compare You can only compare 4 products, you must remove 1 to add this one

USB A+A 15W charger allowing quick charge (Smartphone tablet Powerbank)

USB A+A charger 15W 3A 5V
Matt black
Delivered with 1G plate in brass 86x86mm which colour and surface might vary from a plate in brass to another due to craftman manufacturing
USB terminals with screws - capacity: 2 x 2.5 mm2 - Stripping length: 6 mm - Screwdriver: flat 3.5 mm
CEI 62368-1: 2014 Safety - BS1363 Safety

It is recommended to install the plates only after the wall coatings have been completely finished (paint, fabrics, etc.). Indoor use only

Reliability of use up to 10,000 USB insertions (Mechanical test certified by our laboratories)

Number of modules (module system)	2
Model	Other
Number of ports USB-A	2
Number of ports USB-C	0
Operating voltage	100-240 V
Frequency	50-60 Hz
Max. output current	3000 mA
Output voltage	5-5 V
Power consumption	0.068 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	Black
Device width	86 mm
Device height	86 mm
Device depth	40 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Built-in depth	36 mm
Operating / setting temperature	0-45 °C
Storage temperature	-10-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	15
Supply current	0.5-0.5 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
