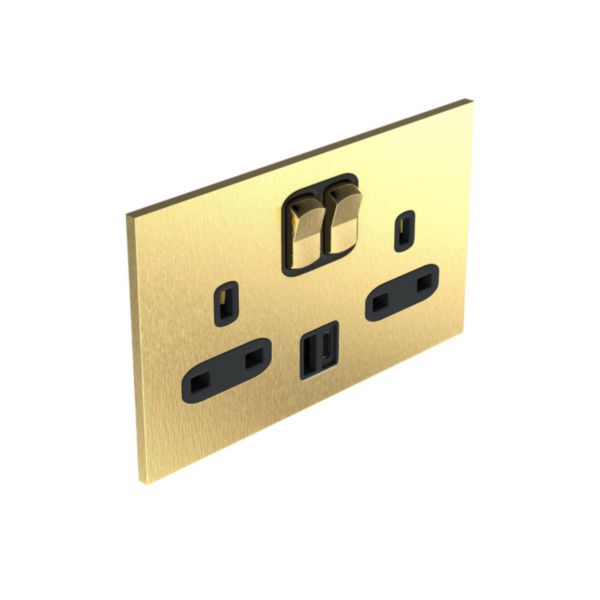

Art d'Arnould - A+A USB charger 3A 15W- Epure brushed steel Art d’Arnould

Art d'Arnould LEGRAND

Art d'Arnould - A+A USB charger 3A 15W- Epure brushed steel Art d’Arnould

REF. AR-68226 EAN. 3233625159496

Combi double BS switched socket + USB A+C allowing quick charge (Smartphone tablet Powerbank) USB A and new USB C standard

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Combi double BS switched socket + USB A+C allowing quick charge (Smartphone tablet Powerbank) USB A and new USB C standard

Product characteristics
  • 2 gang BS socket outlet 13 A-250V single pole switched + USB A+C 3A 5V 15W
  • Brushed gold
  • Delivered with 2G plate in brass 86x146mm which colour and surface might vary from a plate in brass to another due to craftman manufacturing
  • Socket terminals with screws - capacity: 3 x 2.5 mm2 - 2 x 4 mm2 - 2 x 6 mm2 - Stripping length: 12 mm - Compatible with flexible or rigid cables - Prewired USB socket
  • CEI 62368-1: 2014 Safety - BS1363 Safety
Recommendation / Restriction
  • It is recommended to install the plates only after the wall coatings have been completely finished (paint, fabrics, etc.). Indoor use only

The product's benefits

Installation
  • Compatible BS flush-mounting box minimum 35 mm deep
Usage
  • Usual USB A connector and new USB C one
Avantages
  • Reliability of use up to 10,000 USB insertions (Mechanical test certified by our laboratories)

Technical characteristics

Model British Standard
Concurrently switching neutral conductor No
Protective contact Flat
Number of active contacts (round) 0
Number of active contacts (flat) 4
Number of active contacts (square) 0
Assembly arrangement Basic element with full cover plate
With complemantary luminous signal No
Number of ports USB-A 1
Number of ports USB-C 1
Number of socket outlets 2
Number of modules (module system) 4
Number of socket outlets switchable 2
Number of phases 1
Imprint/indication Other
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Gold
Metallic colour Yes
Transparent No
Lockable Yes
Eject-mechanism Yes
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply Safety power supply (green)
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Metal
Material quality Brass
Halogen free Yes
Surface protection Metallic
Surface finishing Glossy
Antimicrobial treatment No
With on/off switch Yes
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Device width 146 mm
Device height 86 mm
Device depth 33 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 24 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15 W
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 2.5-6 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 2.5-6 mm²
Connected object No
